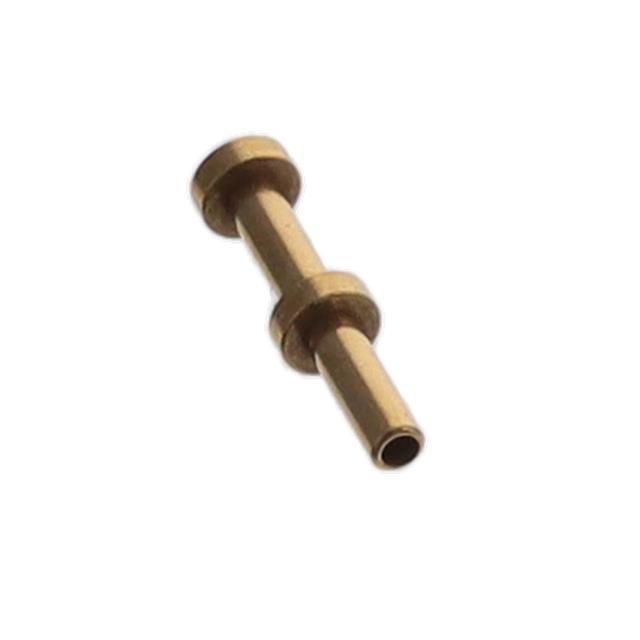

Assmann WSW Components AL 45
Product Information
Length - Above Board:
0.138" (3.50mm)
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Number of Turrets:
Single
Material - Insulation:
-
Termination:
Staking Flare
Flange Diameter:
0.059" (1.50mm)
Length - Overall:
0.236" (5.99mm)
Contact Finish Thickness:
-
Insulation Color:
-
REACH Status:
REACH Unaffected
Terminal Type:
Single End
Package:
Bag
Mounting Hole Diameter:
-
Staking Side OD:
0.031" (0.80mm)
Staking Side ID:
0.024" (0.61mm)
Diameter - Turret Head:
0.059" (1.50mm)
Contact Finish:
Gold
Length - Below Flange:
0.098" (2.50mm)
Insulation:
-
Board Thickness:
0.020" (0.50mm)
standardLeadTime:
20 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Through Hole
Series:
-
ECCN:
EAR99
Contact Material:
Brass
Checking for live stock
FAQs
Yes. You can also search AL 45 on website for other similar products.
We accept all major payment methods for all products including ET23963952. Please check your shopping cart at the time of order.
You can order Assmann WSW Components brand products with AL 45 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Turret Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Assmann WSW Components AL 45. You can also check on our website or by contacting our customer support team for further order details on Assmann WSW Components AL 45.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23963952 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Assmann WSW Components" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23963952.
Yes. We ship AL 45 Internationally to many countries around the world.
This is manufactured by Assmann WSW Components. The manufacturer part number is AL 45. It has 0.138" (3.50mm) length above the board. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. The product comprises single turrets. The product features staking flare termination style. The flange diameter is 0.059" (1.50mm). The product has an integral 0.236" (5.99mm) overall length. In addition, it is reach unaffected. The terminal is a single end type. It is shipped in bag package . It has 0.031" (0.80mm) staking side OD. While 0.024" (0.61mm) is the staking side ID. The turret's head is 0.059" (1.50mm) in diameter. Furthermore, the product is galvanized with excellent gold contact finishing. The product has a 0.098" (2.50mm) length below flange. Moreover, 0.020" (0.50mm) is the given board thickness. It has a long 20 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole configuration. The product is designated with the ear99 code number. The product is made from sturdy brass materials.
