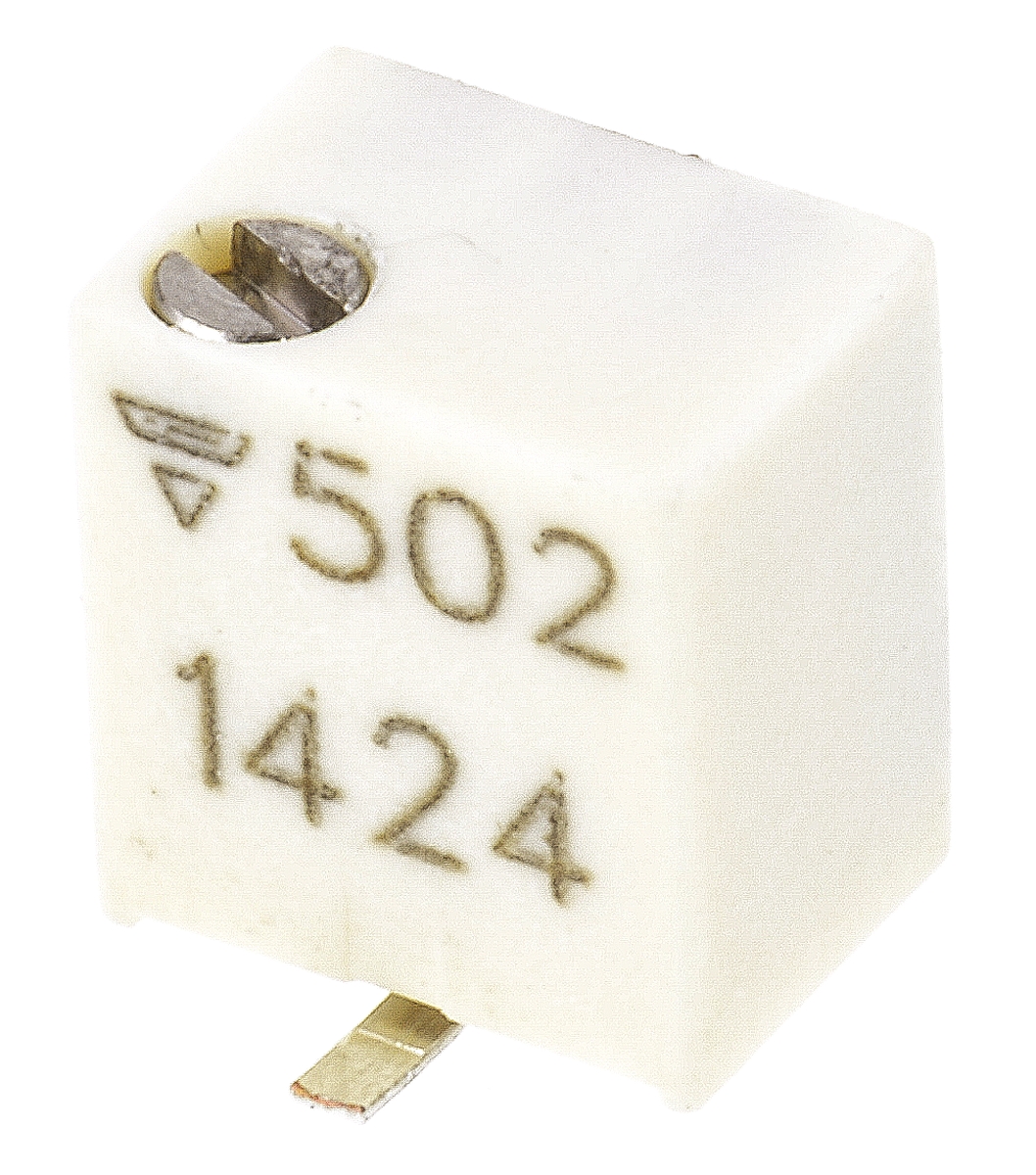

Vishay TSM4YL502KB25, SMD Trimmer Resistor with Gull Wing Terminations, Top Adjust

Vishay

Product Information

Orientation:
Top Adjust
Mounting Type:
Surface Mount
Series:
TSM4
Termination Style:
Gull Wing
Number of Turns:
11
Temperature Coefficient:
±100ppm/°C
Length:
4.8mm
Minimum Operating Temperature:
-55°C
Power Rating:
0.25W
Maximum Resistance:
5kΩ
Tolerance:
±10%
Maximum Operating Temperature:
+125°C
RoHs Compliant
Checking for live stock

The Vishay TSM4YL502KB25 is a high-quality SMD trimmer resistor featuring gull-wing terminations, and top adjust the design. Ideal for precision applications, this resistor offers outstanding reliability and durability, making it perfect for fine-tuning resistances in circuits. Its compact SMD form factor and adjustable resistance make it a versatile choice for a variety of applications that require high accuracy and stable performance.

What Sets the Vishay TSM4YL502KB25, SMD Trimmer Resistor with Gull Wing Terminations Apart?

With its superior adjustability, compact design, and reliable performance, this trimmer resistor is ideal for professionals needing precise control in a wide range of electronic circuits, ensuring long-term, consistent operation.

Unique Features Include

  • Adjustable Resistance: Allows precise tuning for accurate circuit calibration
  • Gull Wing Terminations: Offers stable soldering for reliable connections
  • Top Adjustment: Easy-to-use adjustment for optimal performance
  • SMD Design: Compact and ideal for surface-mount applications

Exceptional Advantages of Buying the Vishay, SMD Trimmer Resistor, Top Adjust

  • Ensures accuracy in sensitive electronic applications.
  • Saves space in your designs without compromising performance.
  • Built for long-term use in high-performance circuits.
  • Top adjust design allows for easy and convenient adjustments.

Broad Range Applications

  • Precision electronics
  • Circuit tuning and calibration
  • Audio equipment
  • Communication devices
  • Power supply circuits
