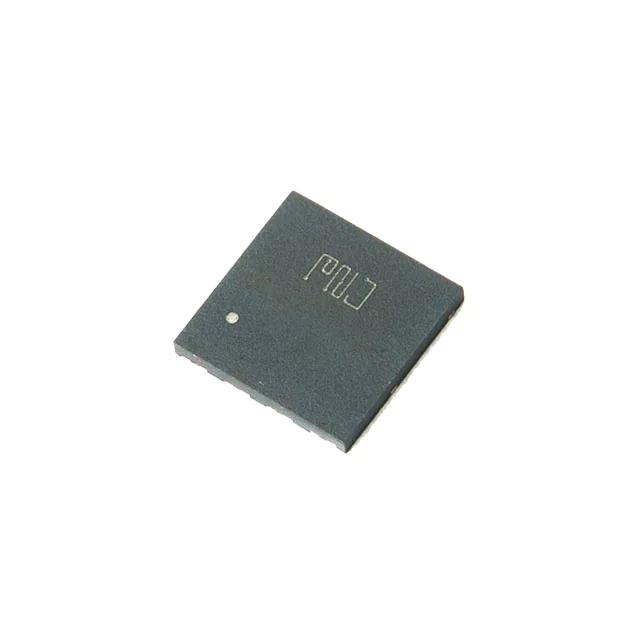

PN Junction Semiconductor P3M06300D8

P3M06300D8 PN Junction Semiconductor
PN Junction Semiconductor

Product Information

FET Feature:
-
Vgs(th) (Max) @ Id:
2.2V @ 5mA
Operating Temperature:
-55°C ~ 175°C (TJ)
Package / Case:
DFN8*8
Rds On (Max) @ Id, Vgs:
500mOhm @ 4.5A, 15V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Affected
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
15V
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
650 V
Vgs (Max):
+20V, -8V
Power Dissipation (Max):
32W
Mounting Type:
Surface Mount
Series:
P3M
Supplier Device Package:
DFN8*8
Current - Continuous Drain (Id) @ 25°C:
9A
Technology:
SiCFET (Silicon Carbide)
Checking for live stock

This is manufactured by PN Junction Semiconductor. The manufacturer part number is P3M06300D8. The typical Vgs (th) (max) of the product is 2.2v @ 5ma. The product has -55°c ~ 175°c (tj) operating temperature range. Moreover, the product comes in dfn8*8. It has a maximum Rds On and voltage of 500mohm @ 4.5a, 15v. The product is rohs3 compliant. In addition, it is reach affected. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 15v. It is shipped in tape & reel (tr) package . The product has a 650 v drain to source voltage. The maximum Vgs rate is +20v, -8v. The product carries maximum power dissipation 32w. The product is available in surface mount configuration. The product p3m, is a highly preferred choice for users. dfn8*8 is the supplier device package value. The continuous current drain at 25°C is 9a. This product use sicfet (silicon carbide) technology.

pdf icon
P3M06300D8(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search P3M06300D8 on website for other similar products.
We accept all major payment methods for all products including ET22975886. Please check your shopping cart at the time of order.
You can order PN Junction Semiconductor brand products with P3M06300D8 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Transistors - FETs, MOSFETs - Single category are shipped in lowest possible time.
You will get a confirmation email regarding your order of PN Junction Semiconductor P3M06300D8. You can also check on our website or by contacting our customer support team for further order details on PN Junction Semiconductor P3M06300D8.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET22975886 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "PN Junction Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET22975886.
Yes. We ship P3M06300D8 Internationally to many countries around the world.
