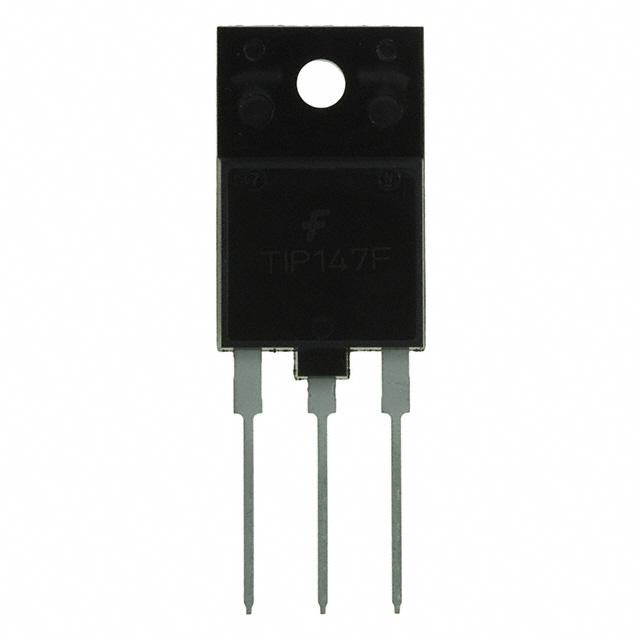

onsemi TIP147FTU
Product Information
Current - Collector (Ic) (Max):
10 A
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Voltage - Collector Emitter Breakdown (Max):
100 V
Operating Temperature:
150°C (TJ)
Package / Case:
TO-3P-3 Full Pack
DC Current Gain (hFE) (Min) @ Ic, Vce:
1000 @ 5A, 4V
edacadModel:
TIP147FTU Models
Frequency - Transition:
-
Vce Saturation (Max) @ Ib, Ic:
3V @ 40mA, 10A
REACH Status:
REACH Unaffected
edacadModelUrl:
/en/models/1055896
Transistor Type:
PNP - Darlington
Package:
Tube
Moisture Sensitivity Level (MSL):
Not Applicable
Current - Collector Cutoff (Max):
2mA
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TO-3PF
Power - Max:
125 W
Base Product Number:
TIP147
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search TIP147FTU on website for other similar products.
We accept all major payment methods for all products including ET21570450. Please check your shopping cart at the time of order.
You can order onsemi brand products with TIP147FTU directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Transistors - Bipolar (BJT) - Single category are shipped in lowest possible time.
You will get a confirmation email regarding your order of onsemi TIP147FTU. You can also check on our website or by contacting our customer support team for further order details on onsemi TIP147FTU.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21570450 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21570450.
Yes. We ship TIP147FTU Internationally to many countries around the world.
This is manufactured by onsemi. The manufacturer part number is TIP147FTU. The maximum collector current includes 10 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. The maximum collector emitter breakdown voltage of the product is 100 v. The product has 150°c (tj) operating temperature range. Moreover, the product comes in to-3p-3 full pack. Furthermore, 1000 @ 5a, 4v is the minimum DC current gain at given voltage. The 3v @ 40ma, 10a is the maximum Vce saturation. In addition, it is reach unaffected. The transistor is a pnp - darlington type. It is shipped in tube package . Its typical moisture sensitivity level is not applicable. In addition, 2ma is the maximum current at collector cutoff. The product is available in through hole configuration. to-3pf is the supplier device package value. The maximum power of the product is 125 w. Moreover, it corresponds to tip147, a base product number of the product. The product is designated with the ear99 code number.
