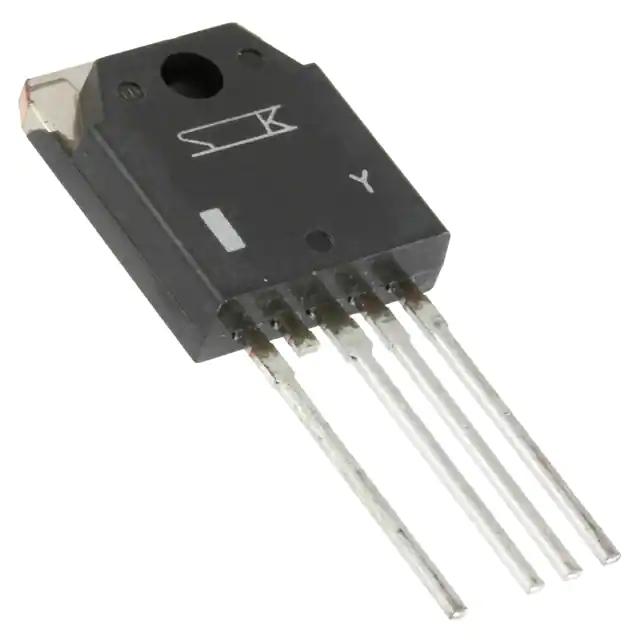

Sanken STD01P
Product Information
Current - Collector (Ic) (Max):
10 A
HTSUS:
8541.29.0095
RoHS Status:
RoHS Compliant
Operating Temperature:
150°C (TJ)
Package / Case:
TO-3P-5
DC Current Gain (hFE) (Min) @ Ic, Vce:
5000 @ 6A, 4V
Frequency - Transition:
-
Vce Saturation (Max) @ Ib, Ic:
2V @ 6mA, 6A
Voltage - Collector Emitter Breakdown (Max):
150 V
Transistor Type:
PNP - Darlington
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Collector Cutoff (Max):
100µA (ICBO)
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TO-3P-5L
Power - Max:
100 W
Base Product Number:
STD01
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search STD01P on website for other similar products.
We accept all major payment methods for all products including ET11107097. Please check your shopping cart at the time of order.
You can order Sanken brand products with STD01P directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Transistors - Bipolar (BJT) - Single category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Sanken STD01P. You can also check on our website or by contacting our customer support team for further order details on Sanken STD01P.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11107097 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Sanken" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11107097.
Yes. We ship STD01P Internationally to many countries around the world.
This is manufactured by Sanken. The manufacturer part number is STD01P. The maximum collector current includes 10 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs compliant. The product has 150°c (tj) operating temperature range. Moreover, the product comes in to-3p-5. Furthermore, 5000 @ 6a, 4v is the minimum DC current gain at given voltage. The 2v @ 6ma, 6a is the maximum Vce saturation. The maximum collector emitter breakdown voltage of the product is 150 v. The transistor is a pnp - darlington type. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). In addition, 100µa (icbo) is the maximum current at collector cutoff. The product is available in through hole configuration. to-3p-5l is the supplier device package value. The maximum power of the product is 100 w. Moreover, it corresponds to std01, a base product number of the product. The product is designated with the ear99 code number.
