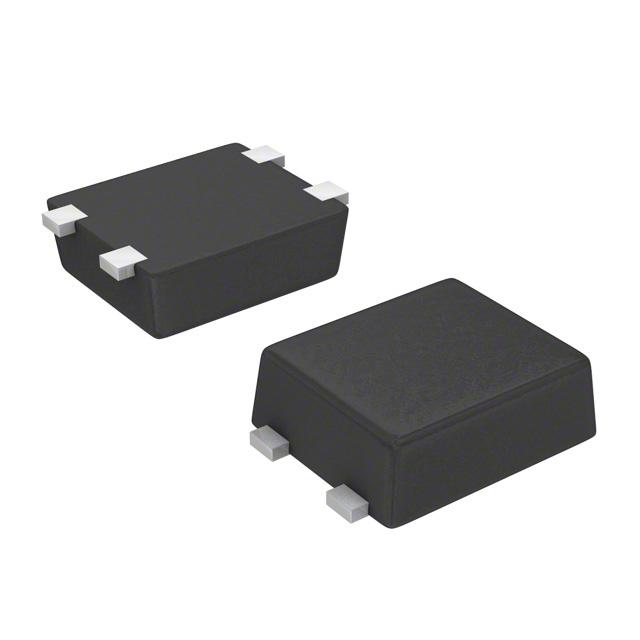

ON Semi NSVF4020SG4T1G NPN Transistor, 150 mA, 8 V, 4-Pin MCPH
Product Information
Transistor Type:
NPN
Dimensions:
2 x 1.6 x 0.85mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
400 mW
Maximum Collector Base Voltage:
15 V
Maximum Collector Emitter Voltage:
8 V
Maximum Operating Frequency:
16 GHz
Maximum Emitter Base Voltage:
2 V
Package Type:
MCPH
Number of Elements per Chip:
1
Maximum DC Collector Current:
150 mA
Maximum Operating Temperature:
+150 °C
Pin Count:
4
Transistor Configuration:
Single
Current - Collector (Ic) (Max):
150mA
HTSUS:
8541.21.0075
RoHS Status:
ROHS3 Compliant
Voltage - Collector Emitter Breakdown (Max):
8V
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
4-SMD, Flat Leads
DC Current Gain (hFE) (Min) @ Ic, Vce:
60 @ 50mA, 5V
Noise Figure (dB Typ @ f):
1.8dB @ 1GHz
Frequency - Transition:
16GHz
REACH Status:
REACH Unaffected
Gain:
17.5dB
Transistor Type:
NPN
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Qualification:
AEC-Q101
standardLeadTime:
6 Weeks
Mounting Type:
Surface Mount
Grade:
Automotive
Series:
-
Supplier Device Package:
SC-82FL/MCPH4
Power - Max:
400mW
Base Product Number:
NSVF4020
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search NSVF4020SG4T1G on website for other similar products.
We accept all major payment methods for all products including ET21473324. Please check your shopping cart at the time of order.
You can order onsemi brand products with NSVF4020SG4T1G directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Transistors - Bipolar (BJT) - RF category are shipped in lowest possible time.
You will get a confirmation email regarding your order of ON Semi NSVF4020SG4T1G NPN Transistor, 150 mA, 8 V, 4-Pin MCPH. You can also check on our website or by contacting our customer support team for further order details on ON Semi NSVF4020SG4T1G NPN Transistor, 150 mA, 8 V, 4-Pin MCPH.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21473324 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21473324.
Yes. We ship NSVF4020SG4T1G Internationally to many countries around the world.
This is ON Semi NPN Transistor 150 mA 8 V 4-Pin MCPH manufactured by onsemi. The manufacturer part number is NSVF4020SG4T1G. The transistor is a npn type. The given dimensions of the product include 2 x 1.6 x 0.85mm. The product is available in surface mount configuration. Provides up to 400 mw maximum power dissipation. Additionally, it has 15 v maximum collector base voltage. Whereas features a 8 v of collector emitter voltage (max). It carries 16 ghz of maximum operating frequency. It features a 2 v of maximum emitter base voltage. The package is a sort of mcph. It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 150 ma. It has a maximum operating temperature of +150 °c. It contains 4 pins. The product offers single transistor configuration. The maximum collector current includes 150ma. It is assigned with possible HTSUS value of 8541.21.0075. The product is rohs3 compliant. The maximum collector emitter breakdown voltage of the product is 8v. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 4-smd, flat leads. Furthermore, 60 @ 50ma, 5v is the minimum DC current gain at given voltage. It has given noise figure of 1.8db @ 1ghz at given frequency. The transition frequency of the product is 16ghz. In addition, it is reach unaffected. The 17.5db is the gain value of a bespoke product. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 6 weeks standard lead time. The product is automotive, a grade of class. sc-82fl/mcph4 is the supplier device package value. The maximum power of the product is 400mw. Moreover, it corresponds to nsvf4020, a base product number of the product. The product is designated with the ear99 code number.
