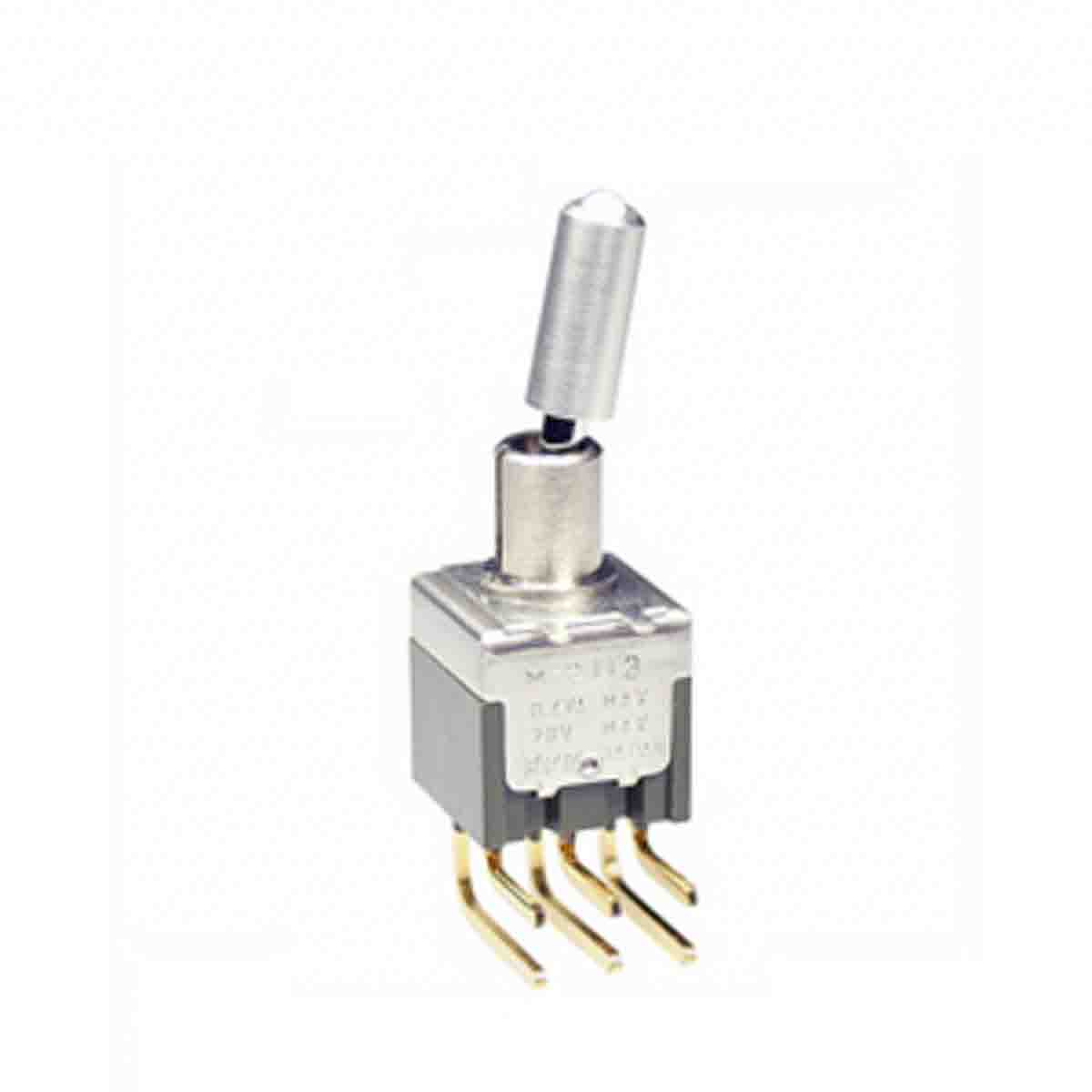

NKK Switches SPDT Toggle Switch, On-Off-On, Illuminated, IP40, Panel Mount
Product Information
Actuator Length:
14.7mm
Illuminated:
Yes
Mounting Type:
Panel Mount
Voltage Rating:
30 V dc, 125 V ac, 250V ac
Contact Current Rating:
6 A
Panel Cut Out Diameter:
6.5mm
IP Rating:
IP40
Actuator Material:
Brass
Operating Temperature Range:
-10 → +55°C
Minimum Operating Temperature:
-10°C
Contact Configuration:
SPDT
Mechanical Life:
50000Operations
Switch Operation:
On-Off-On
Maximum Operating Temperature:
+55°C
Terminal Type:
Solder Lug
Contact Material:
Silver
HTSUS:
8536.50.9065
RoHS Status:
RoHS Compliant
Electrical Life:
25,000 Cycles
Termination Style:
Solder Lug
Voltage Rating - DC:
30 V
Operating Temperature:
-10°C ~ 55°C
Panel Cutout Dimensions:
Circular - 6.50mm Dia
Actuator Length:
14.70mm
Voltage Rating - AC:
125 V
Illumination Type, Color:
LED, Green/Red
Package:
Bulk
Switch Function:
On-Off-On
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPDT
Current Rating (Amps):
6A (AC), 3A (DC)
Ingress Protection:
-
Features:
Epoxy Sealed Terminals
Mounting Type:
Panel Mount
Series:
M2100
Bushing Thread:
1/4-40
Actuator Type:
Standard Round
Illumination:
Illuminated
Illumination Voltage (Nominal):
1.7, 2 VDC
Actuator Material:
-
Base Product Number:
M2113TC
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search M2113TCFW01/M on website for other similar products.
We accept all major payment methods for all products including ET20261395. Please check your shopping cart at the time of order.
You can order NKK Switches brand products with M2113TCFW01/M directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Toggle Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NKK Switches SPDT Toggle Switch, On-Off-On, Illuminated, IP40, Panel Mount. You can also check on our website or by contacting our customer support team for further order details on NKK Switches SPDT Toggle Switch, On-Off-On, Illuminated, IP40, Panel Mount.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20261395 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NKK Switches" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20261395.
Yes. We ship M2113TCFW01/M Internationally to many countries around the world.
This is SPDT Toggle Switch On-Off-On Illuminated IP40 Panel Mount manufactured by NKK Switches. The manufacturer part number is M2113TCFW01/M. The actuator is a 14.7mm long. Illumination Option yes. The product is available in panel mount configuration. Moreover, the product has a nominal 30 v dc, 125 v ac, 250v ac voltage rating. The rated contact current is 6 a. The panel has a 6.5mm cut-out diameter. It is IP rated with ip40. The actuator is designed from sturdy brass material. The product has -10 → +55°c of operating temperature range. Whereas, the minimum operating temperature of the product is -10°c. The contact is equipped with spdt configuration. The product also provide mechanical stability with 50000operations. It provides on-off-on switch operation. It has a maximum operating temperature of +55°c. The terminal is a solder lug type. The product is made from sturdy silver materials. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs compliant. The product offers long-lasting services of 25,000 cycles. Moreover, it has solder lug terminal style. 30 v of DC voltage rating. The product has -10°c ~ 55°c operating temperature range. It also has a circular - 6.50mm dia dimensional features. The actuator is a 14.70mm long. The product exhibits 125 v of AC voltage rating. It is supplied with led, green/red illumination. It is shipped in bulk package . It is designed as a on-off-on switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spdt circuit. Additionally, the product's output is 6a (ac), 3a (dc). The splendid features of the product include epoxy sealed terminals. The product m2100, is a highly preferred choice for users. The product has bushing thread of 1/4-40. The product carries standard round actuator. Is this product illuminated? illuminated. The nominal illumination voltage of the product is 1.7, 2 vdc. Moreover, it corresponds to m2113tc, a base product number of the product. The product is designated with the ear99 code number.
