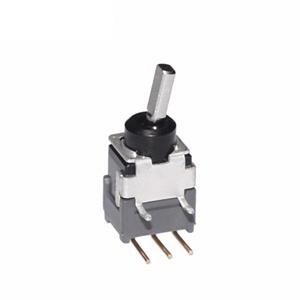

NKK Switches B12HH
Product Information
Contact Resistance:
50mΩ
Actuator Length:
6.3mm
Illuminated:
No
Mounting Type:
PCB
Voltage Rating:
28V ac/dc
Contact Current Rating:
0.4VA
IP Rating:
IP65
Actuator Material:
Nickel Plated Brass
Minimum Operating Temperature:
-30°C
Contact Configuration:
SPDT
Operating Temperature Range:
-30 → +85°C
Switch Operation:
On-(On)
Maximum Operating Temperature:
+85°C
Terminal Type:
Through Hole
Contact Material:
Copper Alloy (Stationary), Phosphor Bronze (Movable)
HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
50,000 Cycles
Termination Style:
PC Pin
Voltage Rating - DC:
28 V
Operating Temperature:
-30°C ~ 85°C
Panel Cutout Dimensions:
-
Actuator Length:
6.30mm
Voltage Rating - AC:
28 V
REACH Status:
REACH Unaffected
edacadModel:
B12HH Models
edacadModelUrl:
/en/models/4507627
Illumination Type, Color:
-
Package:
Bulk
Switch Function:
On-On
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPDT
standardLeadTime:
21 Weeks
Current Rating (Amps):
0.4VA (AC/DC)
Ingress Protection:
-
Features:
Epoxy Sealed Terminals
Mounting Type:
Through Hole, Right Angle
Series:
B
Bushing Thread:
Unthreaded
Actuator Type:
Flatted
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Brass, Nickel Plated
Base Product Number:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search B12HH on website for other similar products.
We accept all major payment methods for all products including ET13461038. Please check your shopping cart at the time of order.
You can order NKK Switches brand products with B12HH directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Toggle Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NKK Switches B12HH. You can also check on our website or by contacting our customer support team for further order details on NKK Switches B12HH.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13461038 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NKK Switches" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13461038.
Yes. We ship B12HH Internationally to many countries around the world.
This is manufactured by NKK Switches. The manufacturer part number is B12HH. It features a 50mω contact resistance. The actuator is a 6.3mm long. Illumination Option no. The product is available in pcb configuration. Moreover, the product has a nominal 28v ac/dc voltage rating. The rated contact current is 0.4va. It is IP rated with ip65. The actuator is designed from sturdy nickel plated brass material. Whereas, the minimum operating temperature of the product is -30°c. The contact is equipped with spdt configuration. The product has -30 → +85°c of operating temperature range. It provides on-(on) switch operation. It has a maximum operating temperature of +85°c. The terminal is a through hole type. The product is made from sturdy copper alloy (stationary), phosphor bronze (movable) materials. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 50,000 cycles. Moreover, it has pc pin terminal style. 28 v of DC voltage rating. The product has -30°c ~ 85°c operating temperature range. The actuator is a 6.30mm long. The product exhibits 28 v of AC voltage rating. In addition, it is reach unaffected. It is shipped in bulk package . It is designed as a on-on switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spdt circuit. It has a long 21 weeks standard lead time. Additionally, the product's output is 0.4va (ac/dc). The splendid features of the product include epoxy sealed terminals. The product is available in through hole, right angle configuration. The product b, is a highly preferred choice for users. The product has bushing thread of unthreaded. The product carries flatted actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy brass, nickel plated material. The product is designated with the ear99 code number.
