Name: 2N6509TG, Littelfuse
Brand: Littelfuse
SKU: ET16931236
Price: 1.54 GBP
Availability: InStock

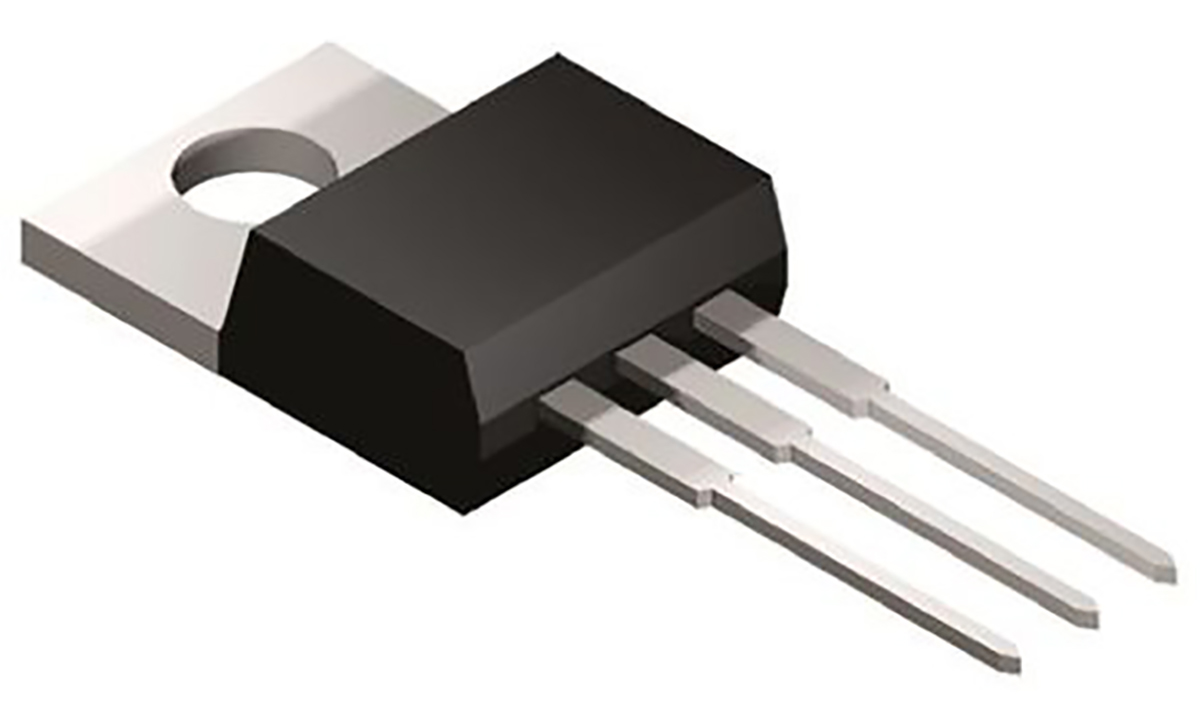

2N6509TG Littelfuse, , Thyristor, 800V, 75mA 3-Pin, TO-220

(0)

Product Information

Repetitive Peak Forward Blocking Voltage:

800V

Repetitive Peak Reverse Voltage:

800V

Peak On-State Voltage:

1.8V

Dimensions:

10.28 x 4.82 x 15.75mm

Mounting Type:

Through Hole

Surge Current Rating:

250A

Package Type:

TO-220

Minimum Operating Temperature:

-40 °C

Maximum Holding Current:

80mA

Maximum Gate Trigger Current:

75mA

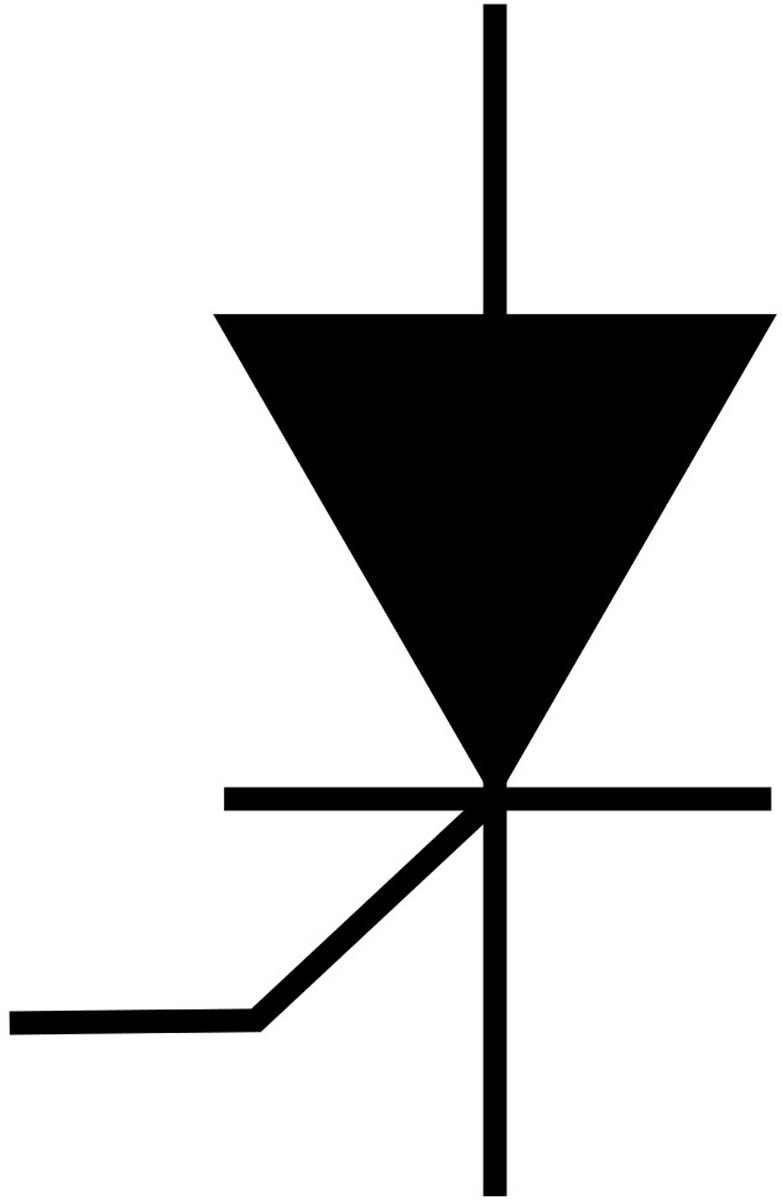

Thyristor Type:

SCR

Maximum Operating Temperature:

+125 °C

Checking for live stock

This is Thyristor 800V 75mA 3-Pin TO-220 manufactured by Littelfuse. The manufacturer part number is 2N6509TG. Moreover, it has a repetitive peak forward blocking voltage about 800v . It has about 800v repetitive reverse voltage . It has a peak on-state voltage about 1.8v . The given dimensions of the product include 10.28 x 4.82 x 15.75mm. The product is available in through hole configuration. It has about 250a surge current rating . The package is a sort of to-220. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 80ma holding current . In addition, the product has a maximum 75ma gate trigger current . In addition, the product has a/an scr type thyristor . It has a maximum operating temperature of +125 °c. It contains 3 pins. Moreover, it has a maximum 1.5v gate trigger voltage .

2N6504 Series, Silicon Controlled Rectifiers Data Sheet(Technical Reference)
