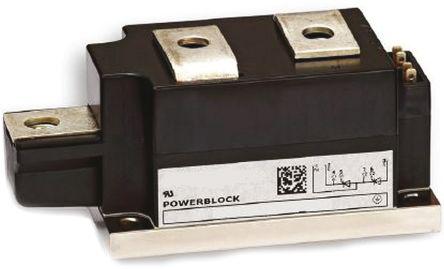

Infineon, TD170N12KOF, Diode/Thyristor Module SCR, PCT, 170A 1200V, 5-Pin Module 50mm

TD170N12KOF Infineon, , Diode/Thyristor Module SCR, PCT, 170A 1200V, 5-Pin Module 50mm
Infineon

Product Information

Repetitive Peak Forward Blocking Voltage:
1800V
Repetitive Peak Reverse Voltage:
1200V
Peak On-State Voltage:
1.65V
Dimensions:
92 x 50 x 52mm
Mounting Type:
Panel Mount
Surge Current Rating:
5200A
Rated Average On-State Current:
170A
Height:
52mm
Width:
50mm
Length:
92mm
Repetitive Peak Off-State Current:
50mA
Package Type:
Module 50mm
Minimum Operating Temperature:
-40 °C
Maximum Holding Current:
300mA
Maximum Gate Trigger Current:
200mA
Thyristor Type:
PCT
Maximum Operating Temperature:
+125 °C
Pin Count:
5
Maximum Gate Trigger Voltage:
2V
RoHs Compliant
Checking for live stock

This is Diode/Thyristor Module SCR PCT 170A 1200V 5-Pin Module 50mm manufactured by Infineon. The manufacturer part number is TD170N12KOF. Moreover, it has a repetitive peak forward blocking voltage about 1800v . It has about 1200v repetitive reverse voltage . It has a peak on-state voltage about 1.65v . The given dimensions of the product include 92 x 50 x 52mm. The product is available in panel mount configuration. It has about 5200a surge current rating . Moreover, it has about 170a rated average on-state current . In addition, the height is 52mm. Furthermore, the product is 50mm wide. Its accurate length is 92mm. Its repetitive peak off-state current is approximately 50ma . The package is a sort of module 50mm. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 300ma holding current . In addition, the product has a maximum 200ma gate trigger current . In addition, the product has a/an pct type thyristor . It has a maximum operating temperature of +125 °c. It contains 5 pins. Moreover, it has a maximum 2v gate trigger voltage .

pdf icon
TT170N(Technical Reference)
