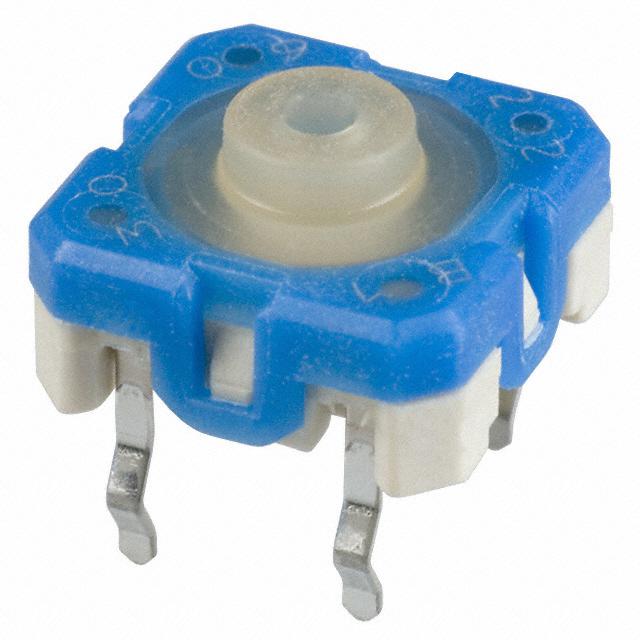

RAFI USA 1.14.100.502/0000

1-14-100-502-0000 RAFI USA 1.14.100.502/0000
RAFI USA

Product Information

Operating Force:
330gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
4.90mm
Operating Temperature:
-40°C ~ 80°C
Actuator Orientation:
Top Actuated
Mechanical Life:
1,000,000 Cycles
REACH Status:
REACH Unaffected
Illumination Type, Color:
-
Outline:
8.40mm x 8.40mm
Package:
Tube
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.1A @ 42VAC/DC
standardLeadTime:
12 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
RACON 8
Switch Travel:
0.34mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
1.14.100
ECCN:
EAR99
Checking for live stock

This is manufactured by RAFI USA. The manufacturer part number is 1.14.100.502/0000. It has a 330gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. Features 4.90mm actuator vertical height off PCB. The product has -40°c ~ 80°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 1,000,000 cycles. In addition, it is reach unaffected. The given outline of the product is 8.40mm x 8.40mm. It is shipped in tube package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.1a @ 42vac/dc. It has a long 12 weeks standard lead time. The product is available in through hole configuration. The product racon 8, is a highly preferred choice for users. The product has a switching travel of 0.34mm. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to 1.14.100, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Tooling capacity 14/OCT/2020(PCN Assembly/Origin)
pdf icon
RACON Accessories Catalog(Datasheets)
pdf icon
1.14100.5020000 Datasheet(Datasheets)
pdf icon
Racon PCB Tactile Switch Catalog(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 1.14.100.502/0000 on website for other similar products.
We accept all major payment methods for all products including ET23146037. Please check your shopping cart at the time of order.
You can order RAFI USA brand products with 1.14.100.502/0000 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of RAFI USA 1.14.100.502/0000. You can also check on our website or by contacting our customer support team for further order details on RAFI USA 1.14.100.502/0000.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23146037 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "RAFI USA" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23146037.
Yes. We ship 1.14.100.502/0000 Internationally to many countries around the world.
