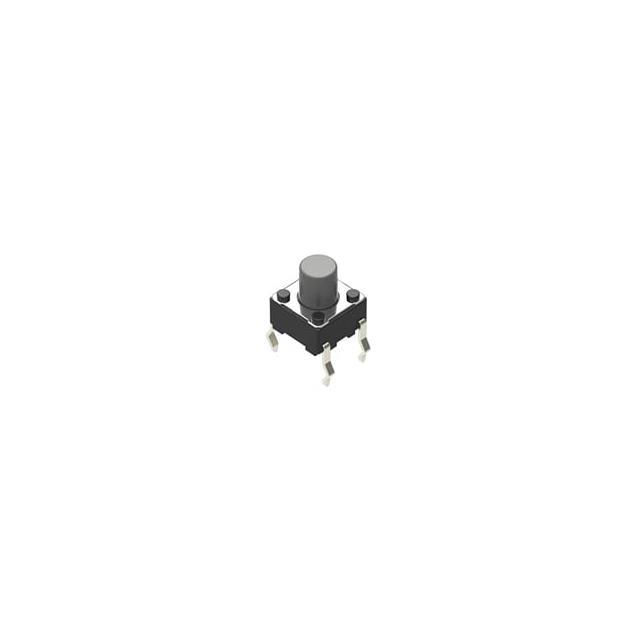

Grey Stem Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 12 V dc 7mm
Product Information
Operating Force:
1.57 N
Actuator Colour:
Grey
Dimensions:
6 x 6 x 7mm
Mounting Type:
Surface Mount
Voltage Rating:
12V dc
Contact Current Rating:
50 mA @ 12 V dc
Minimum Operating Temperature:
-30°C
Operating Temperature Range:
-30 → +85°C
Height:
7mm
Width:
6mm
Length:
6mm
Actuator Type:
Stem
Actuator Length:
7mm
Mechanical Life:
500000Cycles
Contact Configuration:
SPST
Maximum Operating Temperature:
+85°C
Terminal Type:
Through Hole
Switch Operation:
Momentary
Operating Force:
160gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Operating Temperature:
-40°C ~ 90°C
Actuator Orientation:
Top Actuated
Mechanical Life:
500,000 Cycles
Actuator Height off PCB, Vertical:
7.00mm
Illumination Type, Color:
-
Outline:
6.00mm x 6.00mm
Package:
Bulk
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
18 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
SKHH
Switch Travel:
0.25mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
SKHHB
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search SKHHBWA010 on website for other similar products.
We accept all major payment methods for all products including ET18215004. Please check your shopping cart at the time of order.
You can order Alps Alpine brand products with SKHHBWA010 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Grey Stem Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 12 V dc 7mm. You can also check on our website or by contacting our customer support team for further order details on Grey Stem Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 12 V dc 7mm.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18215004 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Alps Alpine" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18215004.
Yes. We ship SKHHBWA010 Internationally to many countries around the world.
This is Grey Stem Tactile Switch Single Pole Single Throw (SPST) 50 mA @ 12 V dc 7mm manufactured by Alps Alpine. The manufacturer part number is SKHHBWA010. It has a 1.57 n of operating force. The actuator has an adorable grey colour. The given dimensions of the product include 6 x 6 x 7mm. The product is available in surface mount configuration. Moreover, the product has a nominal 12v dc voltage rating. The rated contact current is 50 ma @ 12 v dc. Whereas, the minimum operating temperature of the product is -30°c. The product has -30 → +85°c of operating temperature range. In addition, the height is 7mm. Furthermore, the product is 6mm wide. Its accurate length is 6mm. The product carries stem actuator. The actuator is a 7mm long. The product also provide mechanical stability with 500000cycles. The contact is equipped with spst configuration. It has a maximum operating temperature of +85°c. The terminal is a through hole type. It provides momentary switch operation. It has a 160gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. The product has -40°c ~ 90°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 500,000 cycles. Features 7.00mm actuator vertical height off PCB. The given outline of the product is 6.00mm x 6.00mm. It is shipped in bulk package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 18 weeks standard lead time. The product is available in through hole configuration. The product skhh, is a highly preferred choice for users. The product has a switching travel of 0.25mm. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to skhhb, a base product number of the product. The product is designated with the ear99 code number.
