Operating Force:
1.57 N
Actuator Length:
0.65mm
Dimensions:
6.20 x 6.20 x 3.1mm
Mounting Type:
Surface Mount
Voltage Rating:
24V dc
Contact Current Rating:
50 mA
Minimum Operating Temperature:
-25°C
Contact Configuration:
Single Pole Single Throw (SPST)
Height:
3.1mm
Width:
6.2mm
Length:
6.2mm
Actuator Type:
Flat Button
Operating Temperature Range:
-25 → +70°C
Switch Operation:
Off-On (Momentary)
Maximum Operating Temperature:
+70°C
Terminal Type:
Gull Wing
Contact Material:
Beryllium Copper (Movable), Brass (Stationary)
Operating Force:
157gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Actuator Height off PCB, Vertical:
3.10mm
Operating Temperature:
-25°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
100,000 Cycles
REACH Status:
REACH Unaffected
edacadModel:
CB315FP Models
edacadModelUrl:
/en/models/1055415
Illumination Type, Color:
-
Outline:
6.20mm x 6.20mm
Package:
Tray
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 24VDC
standardLeadTime:
18 Weeks
Ingress Protection:
-
Features:
Sealed - Fully
Mounting Type:
Surface Mount
Series:
CB3
Switch Travel:
0.25mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Polyamide (PA), Nylon, Glass Filled
Base Product Number:
-
ECCN:
EAR99

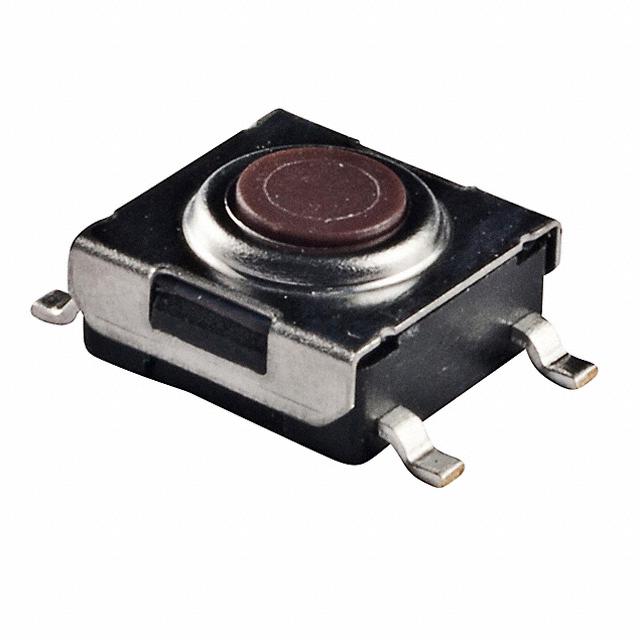

This is Flat Button Tactile Switch SPST 50 mA 0.65mm Surface Mount manufactured by NKK Switches. The manufacturer part number is CB315FP. It has a 1.57 n of operating force. The actuator is a 0.65mm long. The given dimensions of the product include 6.20 x 6.20 x 3.1mm. The product is available in surface mount configuration. Moreover, the product has a nominal 24v dc voltage rating. The rated contact current is 50 ma. Whereas, the minimum operating temperature of the product is -25°c. The contact is equipped with single pole single throw (spst) configuration. In addition, the height is 3.1mm. Furthermore, the product is 6.2mm wide. Its accurate length is 6.2mm. The product carries flat button actuator. The product has -25 → +70°c of operating temperature range. It provides off-on (momentary) switch operation. It has a maximum operating temperature of +70°c. The terminal is a gull wing type. The product is made from sturdy beryllium copper (movable), brass (stationary) materials. It has a 157gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has gull wing terminal style. Features 3.10mm actuator vertical height off PCB. The product has -25°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 100,000 cycles. In addition, it is reach unaffected. The given outline of the product is 6.20mm x 6.20mm. It is shipped in tray package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 24vdc. It has a long 18 weeks standard lead time. The splendid features of the product include sealed - fully. The product cb3, is a highly preferred choice for users. The product has a switching travel of 0.25mm. The product carries standard actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy polyamide (pa), nylon, glass filled material. The product is designated with the ear99 code number.
