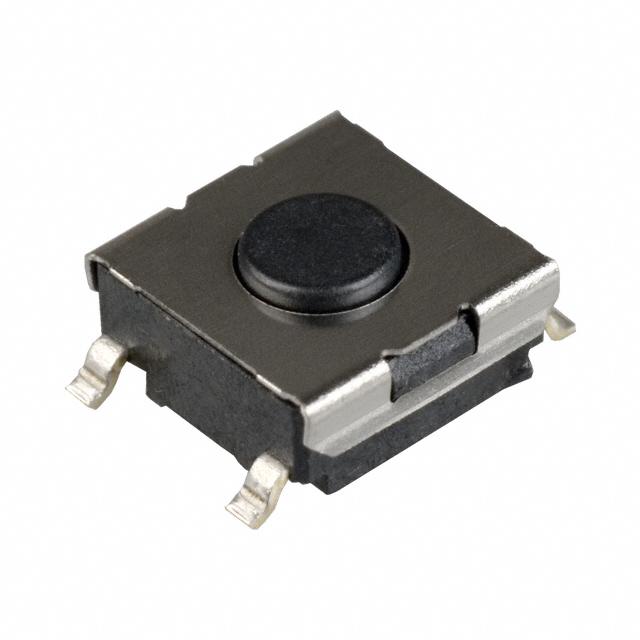

Omron Electronics Inc-EMC Div B3FS-1000P

B3FS-1000P Omron Electronics Inc-EMC Div
B3FS-1000P
Omron Electronics Inc-EMC Div

Product Information

Operating Force:
100gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Actuator Height off PCB, Vertical:
3.10mm
Operating Temperature:
-25°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
1,000,000 Cycles
REACH Status:
REACH Unaffected
edacadModel:
B3FS-1000P Models
edacadModelUrl:
/en/models/277812
Illumination Type, Color:
-
Outline:
6.30mm x 6.00mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 24VDC
standardLeadTime:
14 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
B3FS
Packaging:
Tape & Reel (TR)
Switch Travel:
0.25mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
B3FS
ECCN:
EAR99
Checking for live stock

This is manufactured by Omron Electronics Inc-EMC Div. The manufacturer part number is B3FS-1000P. It has a 100gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has gull wing terminal style. Features 3.10mm actuator vertical height off PCB. The product has -25°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 1,000,000 cycles. In addition, it is reach unaffected. The given outline of the product is 6.30mm x 6.00mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 24vdc. It has a long 14 weeks standard lead time. The product is available in surface mount configuration. The product b3fs, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The product has a switching travel of 0.25mm. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to b3fs, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
B3F (6x6) Plunger June/2010(PCN Design/Specification)
pdf icon
B3FS Series Datasheet(Datasheets)
pdf icon
Basics of Tactile Switches(Other Related Documents)
pdf icon
How to Read Date Codes(Other Related Documents)
pdf icon
Tactile Switch Safety Precautions(Other Related Documents)
