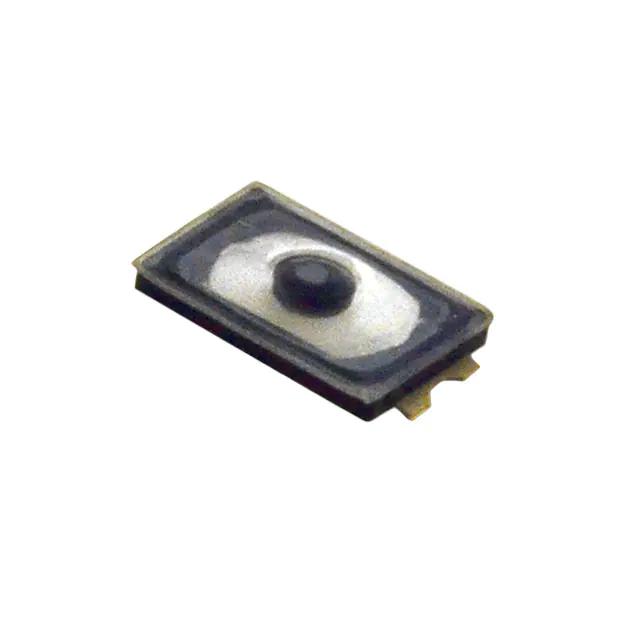

E-Switch TL3780AF240QG
Product Information
Operating Force:
240gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Actuator Height off PCB, Vertical:
0.60mm
Operating Temperature:
-40°C ~ 85°C
Actuator Orientation:
Top Actuated
Mechanical Life:
500,000 Cycles
REACH Status:
REACH Unaffected
edacadModel:
TL3780AF240QG Models
edacadModelUrl:
/en/models/6003167
Illumination Type, Color:
-
Outline:
3.00mm x 2.00mm
Package:
Tape & Reel (TR)
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
15 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
TL3780
Switch Travel:
0.13mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
TL3780
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search TL3780AF240QG on website for other similar products.
We accept all major payment methods for all products including ET11962139. Please check your shopping cart at the time of order.
You can order E-Switch brand products with TL3780AF240QG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of E-Switch TL3780AF240QG. You can also check on our website or by contacting our customer support team for further order details on E-Switch TL3780AF240QG.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11962139 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "E-Switch" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11962139.
Yes. We ship TL3780AF240QG Internationally to many countries around the world.
This is manufactured by E-Switch. The manufacturer part number is TL3780AF240QG. It has a 240gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has gull wing terminal style. Features 0.60mm actuator vertical height off PCB. The product has -40°c ~ 85°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 500,000 cycles. In addition, it is reach unaffected. The given outline of the product is 3.00mm x 2.00mm. It is shipped in tape & reel (tr) package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 15 weeks standard lead time. The product is available in surface mount configuration. The product tl3780, is a highly preferred choice for users. The product has a switching travel of 0.13mm. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to tl3780, a base product number of the product. The product is designated with the ear99 code number.
