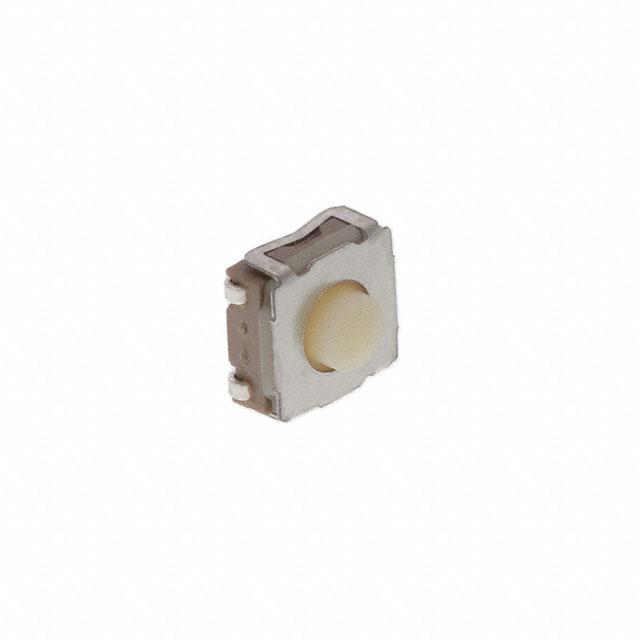

E-Switch TL3304AF160QJ
Product Information
Operating Force:
160gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
J Lead
Actuator Height off PCB, Vertical:
3.40mm
Operating Temperature:
-20°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
100,000 Cycles
REACH Status:
REACH Unaffected
edacadModel:
TL3304AF160QJ Models
edacadModelUrl:
/en/models/1089939
Illumination Type, Color:
-
Outline:
6.20mm x 6.20mm
Package:
Tape & Reel (TR)
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 50VDC
standardLeadTime:
15 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
TL3304
Switch Travel:
0.25mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Rubber
Base Product Number:
TL3304
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search TL3304AF160QJ on website for other similar products.
We accept all major payment methods for all products including ET11236107. Please check your shopping cart at the time of order.
You can order E-Switch brand products with TL3304AF160QJ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of E-Switch TL3304AF160QJ. You can also check on our website or by contacting our customer support team for further order details on E-Switch TL3304AF160QJ.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11236107 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "E-Switch" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11236107.
Yes. We ship TL3304AF160QJ Internationally to many countries around the world.
This is manufactured by E-Switch. The manufacturer part number is TL3304AF160QJ. It has a 160gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has j lead terminal style. Features 3.40mm actuator vertical height off PCB. The product has -20°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 100,000 cycles. In addition, it is reach unaffected. The given outline of the product is 6.20mm x 6.20mm. It is shipped in tape & reel (tr) package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 50vdc. It has a long 15 weeks standard lead time. The product is available in surface mount configuration. The product tl3304, is a highly preferred choice for users. The product has a switching travel of 0.25mm. The product carries standard actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy rubber material. Moreover, it corresponds to tl3304, a base product number of the product. The product is designated with the ear99 code number.
