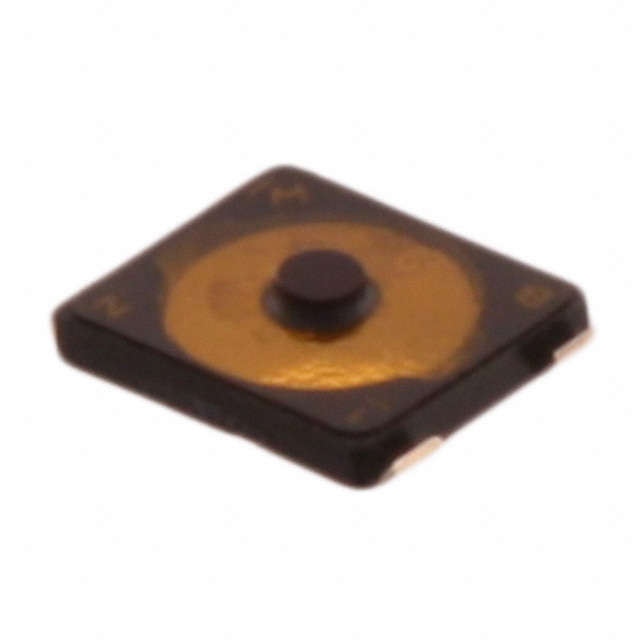

Panasonic Electronic Components EVP-AF7B70

EVP-AF7B70 Panasonic Electronic Components
Panasonic Electronic Components

Product Information

Operating Force:
245gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
J Lead
Operating Temperature:
-40°C ~ 85°C
Actuator Orientation:
Top Actuated
Mechanical Life:
500,000 Cycles
title:
EVP-AF7B70
Actuator Height off PCB, Vertical:
0.70mm
edacadModel:
EVP-AF7B70 Models
edacadModelUrl:
/en/models/3182276
Illumination Type, Color:
-
Outline:
3.00mm x 2.60mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.02A @ 15VDC
standardLeadTime:
22 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
EVPAF
Packaging:
Tape & Reel (TR)
Switch Travel:
0.15mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
EVP-AF
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electronic Components. The manufacturer part number is EVP-AF7B70. It has a 245gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has j lead terminal style. The product has -40°c ~ 85°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 500,000 cycles. Features 0.70mm actuator vertical height off PCB. The given outline of the product is 3.00mm x 2.60mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.02a @ 15vdc. It has a long 22 weeks standard lead time. The product is available in surface mount configuration. The product evpaf, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The product has a switching travel of 0.15mm. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to evp-af, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Multiple Series Location 10/Jul/2020(PCN Assembly/Origin)
pdf icon
EVPAF/EVP0A(Datasheets)
