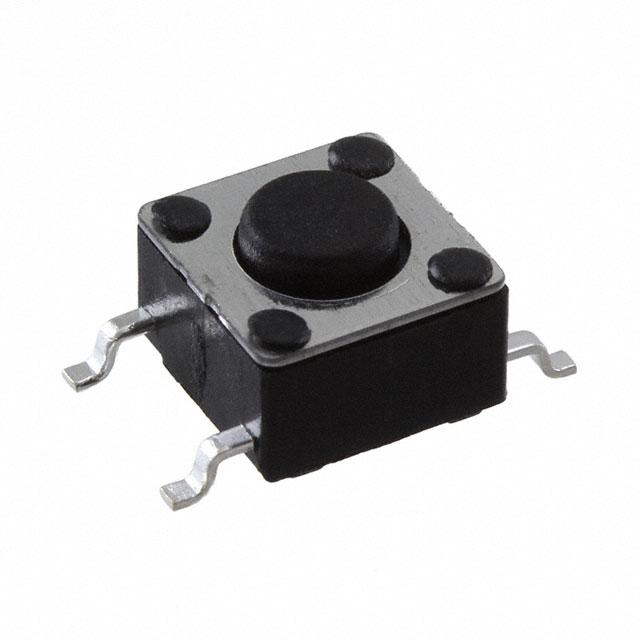

Schurter Inc. 1301.9314

1301-9314 Schurter Inc. 1301.9314
Schurter Inc.

Product Information

Operating Force:
160gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Actuator Height off PCB, Vertical:
4.30mm
Operating Temperature:
-20°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
100,000 Cycles
REACH Status:
REACH Unaffected
Illumination Type, Color:
-
Outline:
6.00mm x 6.00mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
Not Applicable
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
34 Weeks
Ingress Protection:
IP40
Features:
Tactile Feedback
Mounting Type:
Surface Mount
Series:
LSH
Packaging:
Bulk
Switch Travel:
0.25mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Schurter Inc.. The manufacturer part number is 1301.9314. It has a 160gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has gull wing terminal style. Features 4.30mm actuator vertical height off PCB. The product has -20°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 100,000 cycles. In addition, it is reach unaffected. The given outline of the product is 6.00mm x 6.00mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is not applicable. It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 34 weeks standard lead time. It is IP rated with ip40. The splendid features of the product include tactile feedback. The product is available in surface mount configuration. The product lsh, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product has a switching travel of 0.25mm. The product carries standard actuator. Is this product illuminated? non-illuminated. The product is designated with the ear99 code number.

pdf icon
6x6 mm Tact Datasheet(Datasheets)
pdf icon
Mult Devs - Label chg 23/SEP/2021(PCN Design/Specification)
pdf icon
Schurter Inc RoHS Cert(Environmental Information)
pdf icon
Schurter Inc REACH Declaration(Environmental Information)
