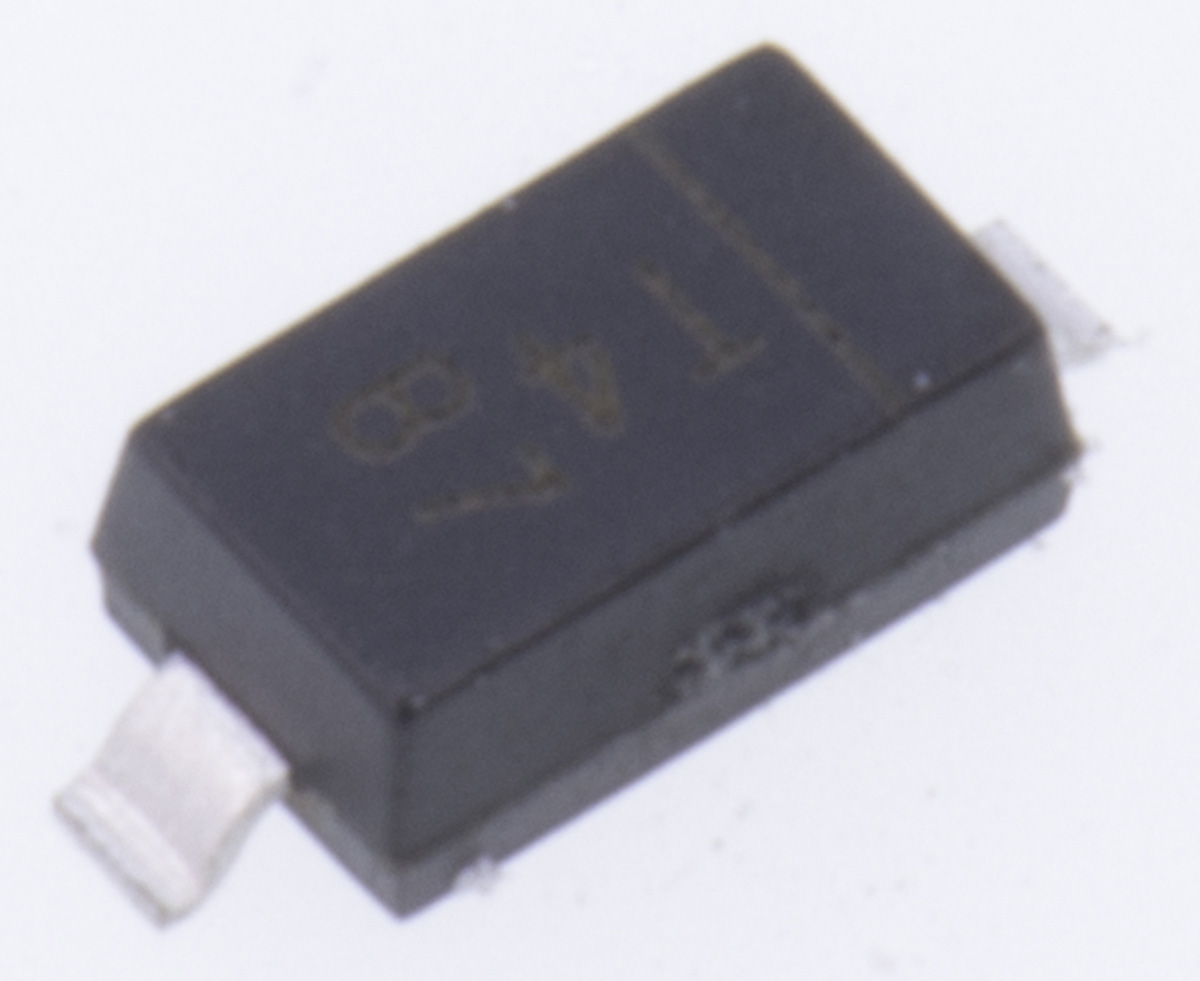

Diodes Inc 1N4148W-13-F Switching Diode, 300mA 100V, 2-Pin SOD-123

1N4148W-13-F Diodes Inc  Switching Diode, 300mA 100V, 2-Pin SOD-123
1N4148W-13-F
DiodesZetex

Product Information

Maximum Diode Capacitance:
2pF
Dimensions:
2.85 x 1.7 x 1.35mm
Mounting Type:
Surface Mount
Diode Technology:
Silicon Junction
Maximum Forward Current:
300mA
Maximum Forward Voltage Drop:
1.25V
Height:
1.35mm
Width:
1.7mm
Length:
2.85mm
Package Type:
SOD-123
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Reverse Voltage:
100V
Maximum Operating Temperature:
+150 °C
Diode Configuration:
Single
Pin Count:
2
RoHs Compliant
Checking for live stock

This is Diodes Inc Switching Diode 300mA 100V 2-Pin SOD-123 manufactured by DiodesZetex. The manufacturer part number is 1N4148W-13-F. It has a maximum 2pf diode capacitance . The given dimensions of the product include 2.85 x 1.7 x 1.35mm. The product is available in surface mount configuration. The product utilizes silicon junction diode technology. Moreover, the product has a maximum 300ma forward current . It features 1.25v of maximum forward voltage drop. In addition, the height is 1.35mm. Furthermore, the product is 1.7mm wide. Its accurate length is 2.85mm. The package is a sort of sod-123. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. Moreover, the product has a maximum 100v reverse voltage . It has a maximum operating temperature of +150 °c. The diode features a single configuration. It contains 2 pins.

pdf icon
Datasheet(Technical Reference)
