Name: 1N914TAP, Vishay
Brand: Vishay
SKU: ET14013771
Price: 0.038 GBP
Availability: InStock

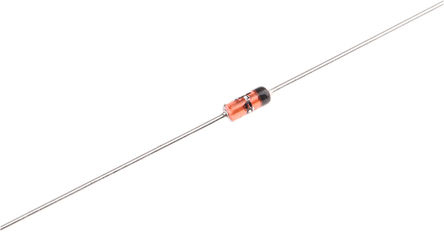

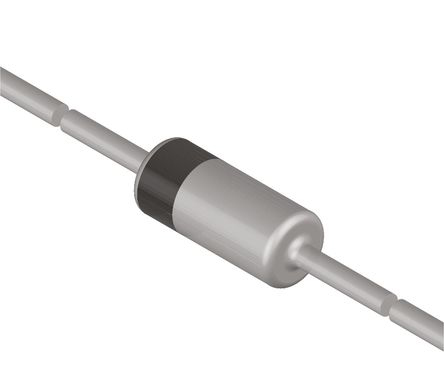

1N914TAP Vishay Switching Diode, 300mA 75V, 2-Pin DO-35

(0)

Product Information

Maximum Diode Capacitance:

4pF

Diameter:

1.7mm

Dimensions:

1.7 (Dia.) x 3.9mm

Mounting Type:

Through Hole

Power Dissipation:

500mW

Maximum Forward Current:

300mA

Maximum Forward Voltage Drop:

Diode Technology:

Silicon Junction

Length:

3.9mm

Package Type:

DO-35

Number of Elements per Chip:

Maximum Reverse Voltage:

75V

Checking for live stock

This is Switching Diode 300mA 75V 2-Pin DO-35 manufactured by Vishay. The manufacturer part number is 1N914TAP. It has a maximum 4pf diode capacitance . Its diameter is 1.7mm. The given dimensions of the product include 1.7 (dia.) x 3.9mm. The product is available in through hole configuration. It has about 500mw power dissipation . Moreover, the product has a maximum 300ma forward current . It features 1v of maximum forward voltage drop. The product utilizes silicon junction diode technology. Its accurate length is 3.9mm. The package is a sort of do-35. It consists of 1 elements per chip. Moreover, the product has a maximum 75v reverse voltage . It has a maximum operating temperature of +175 °c. The diode features a single configuration. It contains 2 pins.
