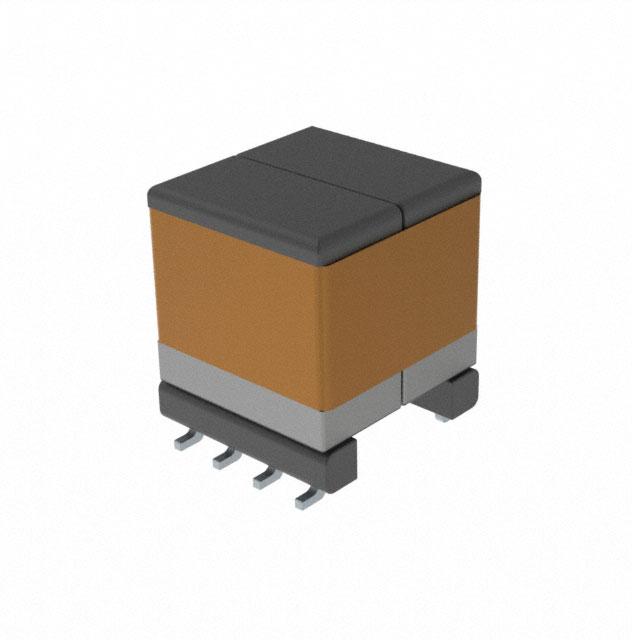

Pulse Electronics PH9496NLT
Product Information
Style:
-
HTSUS:
8504.31.4035
RoHS Status:
RoHS Compliant
Inductance @ Frequency:
-
Operating Temperature:
-40°C ~ 125°C
Voltage - Primary:
8 ~ 18V
Height - Seated (Max):
0.492" (12.50mm)
Type:
For DC/DC Converters
REACH Status:
REACH Unaffected
edacadModel:
PH9496NLT Models
Applications:
Flyback Converters
Chipset Manufacturer:
-
edacadModelUrl:
/en/models/7943187
Package:
Tape & Reel (TR)
Voltage - Auxiliary:
-
Size / Dimension:
0.413" L x 0.406" W (10.50mm x 10.30mm)
standardLeadTime:
15 Weeks
Voltage - Isolation:
2500Vrms
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Intended Chipset:
ACPL-32JT, ACPL-302J
Series:
-
Frequency:
80kHz
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search PH9496NLT on website for other similar products.
We accept all major payment methods for all products including ET23488079. Please check your shopping cart at the time of order.
You can order Pulse Electronics brand products with PH9496NLT directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Switching Converter, SMPS Transformers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Pulse Electronics PH9496NLT. You can also check on our website or by contacting our customer support team for further order details on Pulse Electronics PH9496NLT.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23488079 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Pulse Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23488079.
Yes. We ship PH9496NLT Internationally to many countries around the world.
This is manufactured by Pulse Electronics. The manufacturer part number is PH9496NLT. It is assigned with possible HTSUS value of 8504.31.4035. The product is rohs compliant. The product has -40°c ~ 125°c operating temperature range. Features primary voltage 8 ~ 18v. It has the maximum seated height of 0.492" (12.50mm). It comes in for dc/dc converters configuration. In addition, it is reach unaffected. The product is widely employed in flyback converters. It is shipped in tape & reel (tr) package . The product's diameters include 0.413" l x 0.406" w (10.50mm x 10.30mm). It has a long 15 weeks standard lead time. 2500vrms of isolation voltage. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. Intendent Chipset Specs - acpl-32jt, acpl-302j. Supplied with 80khz of frequency. The product is designated with the ear99 code number.
