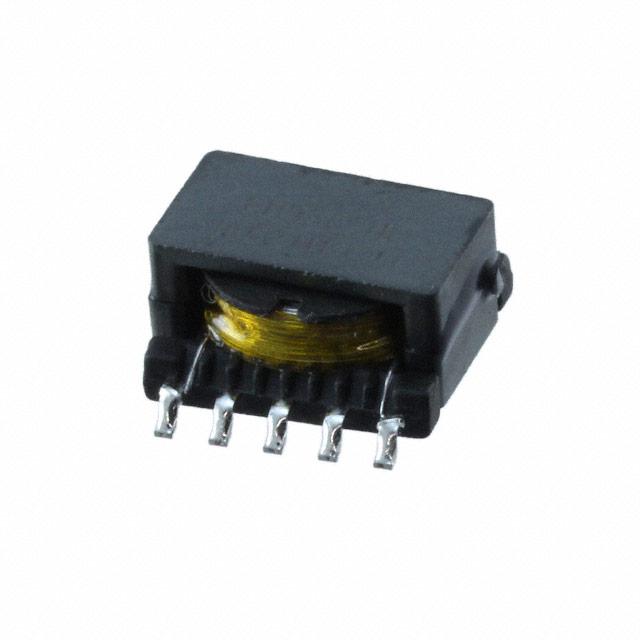

Pulse Electronics PH9363NLT

PH9363NLT Pulse Electronics
Pulse Electronics

Product Information

HTSUS:
8504.31.2000
RoHS Status:
ROHS3 Compliant
Inductance @ Frequency:
-
Operating Temperature:
-40°C ~ 125°C
Voltage - Primary:
8 ~ 18V
Height - Seated (Max):
0.266" (6.75mm)
Type:
For DC/DC Converters
REACH Status:
REACH Unaffected
edacadModel:
PH9363NLT Models
Applications:
Flyback Converters
Chipset Manufacturer:
-
Footprint:
0.472" L x 0.512" W (12.00mm x 13.00mm)
Package:
Tape & Reel (TR)
Voltage - Auxiliary:
-
Size / Dimension:
0.472" L x 0.366" W (12.00mm x 9.30mm)
edacadModelUrl:
/en/models/6555145
standardLeadTime:
15 Weeks
Voltage - Isolation:
2500Vrms
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Intended Chipset:
ACPL-32JT, ACPL-302J
Series:
-
Frequency:
80kHz
ECCN:
EAR99
Checking for live stock

This is manufactured by Pulse Electronics. The manufacturer part number is PH9363NLT. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs3 compliant. The product has -40°c ~ 125°c operating temperature range. Features primary voltage 8 ~ 18v. It has the maximum seated height of 0.266" (6.75mm). It comes in for dc/dc converters configuration. In addition, it is reach unaffected. The product is widely employed in flyback converters. Footprint Options include 0.472" l x 0.512" w (12.00mm x 13.00mm). It is shipped in tape & reel (tr) package . The product's diameters include 0.472" l x 0.366" w (12.00mm x 9.30mm). It has a long 15 weeks standard lead time. 2500vrms of isolation voltage. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. Intendent Chipset Specs - acpl-32jt, acpl-302j. Supplied with 80khz of frequency. The product is designated with the ear99 code number.
