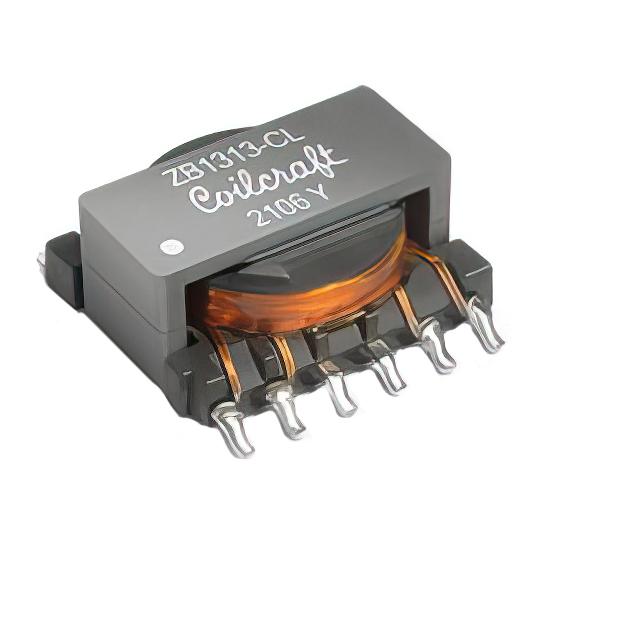

COILCRAFT ZB1313-CLD

ZB1313-CLD COILCRAFT
COILCRAFT

Product Information

Style:
Wirewound
HTSUS:
8504.31.4035
Inductance @ Frequency:
10.5µH @ 150kHz
Operating Temperature:
-40°C ~ 85°C
Voltage - Primary:
18 ~ 38V
Height - Seated (Max):
0.291" (7.40mm)
Type:
For DC/DC Converters
Applications:
Flyback Converters
Chipset Manufacturer:
Maxim Integrated
Footprint:
0.661" L x 0.642" W (16.80mm x 16.30mm)
Package:
Strip
Voltage - Auxiliary:
-
Size / Dimension:
-
Voltage - Isolation:
1500Vrms
Mounting Type:
Surface Mount
Intended Chipset:
MAX17690
Series:
ZB1313-CL
Frequency:
163kHz
ECCN:
EAR99
Checking for live stock

This is manufactured by COILCRAFT. The manufacturer part number is ZB1313-CLD. Additionally, the product is designed with wirewound Style. It is assigned with possible HTSUS value of 8504.31.4035. Typical inductance of 10.5µh @ 150khz. The product has -40°c ~ 85°c operating temperature range. Features primary voltage 18 ~ 38v. It has the maximum seated height of 0.291" (7.40mm). It comes in for dc/dc converters configuration. The product is widely employed in flyback converters. It is maxim integrated's product with versatile user-desired applications. Footprint Options include 0.661" l x 0.642" w (16.80mm x 16.30mm). It is shipped in strip package . 1500vrms of isolation voltage. The product is available in surface mount configuration. Intendent Chipset Specs - max17690. The product zb1313-cl, is a highly preferred choice for users. Supplied with 163khz of frequency. The product is designated with the ear99 code number.
