Panasonic ERJ2GEJ Series Thick Film Surface Mount Fixed Resistor 0402 Case 4.7kΩ ±5% 0.1W ±200ppm/°C

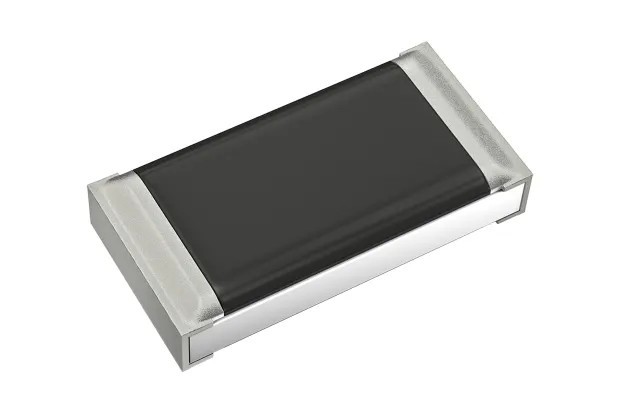

The Panasonic ERJ 2GEJ472X is a high reliability 4.7 kΩ ±5% thick film chip resistor in the ultra compact 0402 (1005 metric) SMD format. Designed for automotive and industrial electronics, this precision component delivers stable performance across a broad temperature range from –55 °C to +155 °C. Built to meet AEC Q200 qualification and industry standards (IEC 60115 8, JIS C 5201 8, JEITA RC 2134C), it’s ideal for space constrained, automated assembly applications.

Why Choose the Panasonic ERJ 2GEJ472X?

Choosing the ERJ 2GEJ472X means selecting compactness without compromise. Its ultra-small 0402 footprint and lightweight profile make it perfect for modern high-density boards, while automotive-grade AEC-Q200 certification ensures it can withstand harsh environments. The combination of a metal-glaze thick-film resistive element and a triple-layer electrode design delivers exceptional long-term reliability and consistent resistance even under thermal stress.

Product Core Highlights – Features & Benefits

• 4.7 kΩ resistance with ±5% tolerance offers reliable mid range value for general circuits
• Power rating of 0.1 W (1/10 W) in the tiny 0402 package supports compact, low power designs
• AEC Q200 automotive qualification ensures rugged performance and long life in demanding conditions
• Temperature coefficient of ±200 ppm/°C maintains stable resistance across –55 °C to +155 °C range
• Built from a metal glaze thick film element and triple layer electrodes for superior reliability and solder durability
• Compatible with both reflow and flow soldering processes for seamless automated assembly
• Compliant with IEC, JIS, and JEITA standards, plus RoHS environmental compliance
• Industry wide tape & reel packaging optimised for placement machines and large scale production runs with efficient ordering.

For more information please check the datasheets.
