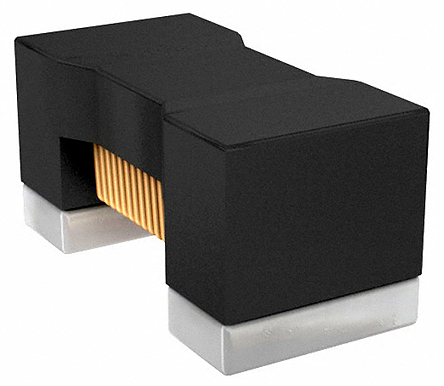

Murata LQW18A Series Type 0603 Wire-wound SMD Inductor with a Ferrite Core, 36 nH ±5% Wire-Wound 400mA Idc Q:40

LQW18AN36NJ00D Murata LQW18A Series Type 0603 Wire-wound SMD Inductor with a Ferrite Core, 36 nH ±5% Wire-Wound 400mA Idc Q:40
Murata

Product Information

Maximum DC Resistance:
260mΩ
Inductor Construction:
Wire-Wound
Dimensions:
1.6 x 0.8 x 0.8mm
Shielded:
No
Series:
LQW18A_00
Minimum Quality Factor:
40
Length:
1.6mm
Height:
0.8mm
Maximum DC Current:
400mA
Depth:
0.8mm
Core Material:
Ferrite
Inductance:
36 nH
Maximum Self Resonant Frequency:
2.9GHz
Maximum Operating Temperature:
+125°C
Tolerance:
±5%
Minimum Operating Temperature:
-55°C
Package/Case:
0603 (1608M)
RoHs Compliant
Checking for live stock

This is LQW18A Series Type 0603 Wire-wound SMD Inductor with a Ferrite Core 36 nH ±5% Wire-Wound 400mA Idc Q:40 manufactured by Murata. The manufacturer part number is LQW18AN36NJ00D. It allows up to 260mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 1.6 x 0.8 x 0.8mm. Shielding Options no. The product lqw18a_00, is a highly preferred choice for users. It has minimum 40 quality factors. Its accurate length is 1.6mm. In addition, the height is 0.8mm. While it carries 400ma of maximum DC current. The product comes in 0.8mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 36 nh inductance value. It provides 2.9ghz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±5% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 0603 (1608m).

pdf icon
LQW18AN_00 Series (0603 Size) Data Sheet(Technical Reference)
