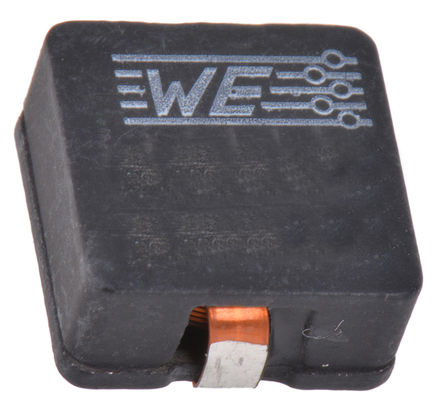

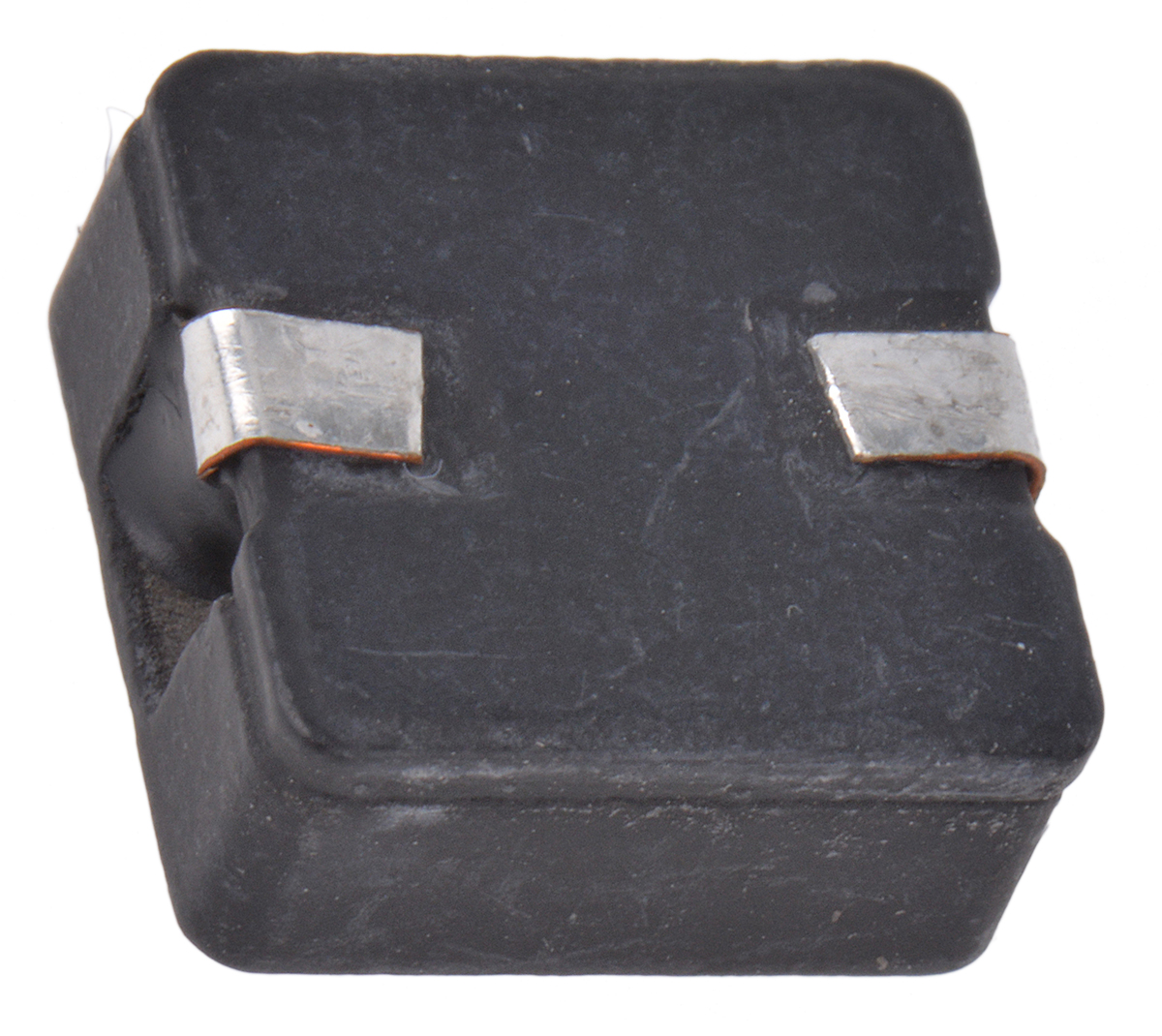

Wurth WE-HCI Series Type 1050 Shielded Wire-wound SMD Inductor with a WE-Superflux Core, 5.5 μH ±20% Flat Wire Winding

744325550 Wurth WE-HCI Series Type 1050 Shielded Wire-wound SMD Inductor with a WE-Superflux Core, 5.5 μH ±20% Flat Wire Winding
744325550
744325550
744325550 Wurth WE-HCI Series Type 1050 Shielded Wire-wound SMD Inductor with a WE-Superflux Core, 5.5 μH ±20% Flat Wire Winding
Wurth Elektronik

Product Information

Inductor Construction:
Flat Wire Winding
Termination Style:
Surface Mount
Inductance Tolerance:
±20 %
Maximum Self Resonant Frequency:
30MHz
Automotive Standard:
AEC-Q200
Shielding:
Yes
Core Material:
WE-Superflux
Inductance:
5.5 μH
Product Type:
Wirewound Surface Mount Inductor
Maximum Operating Temperature:
150°C
Moulded:
Yes
Maximum DC Current:
10A
Length:
10.5mm
Standards/Approvals:
RoHS, REACH, JEDEC JS709B, IEC 61249-2-21
Pin Count:
2
Package/Case:
1050
Maximum DC Resistance:
10.3mΩ
Series:
WE-HCI
Depth:
10.2mm
Height:
4.7mm
Packaging:
Tape & Reel
Minimum Operating Temperature:
-40°C
RoHs Compliant
Checking for live stock

This is Wurth WE-HCI Series Type 1050 Shielded Wire-wound SMD Inductor with a WE-Superflux Core 5.5 μH ±20% Flat Wire Winding manufactured by Wurth Elektronik. The manufacturer part number is 744325550. The inductor is designed as flat wire winding inductor. Moreover, it has surface mount terminal style. It has a standard ±20 % inductance tolerance . It provides 30mhz of maximum self-resonant frequency. The product complies with automotive standard - aec-q200. Furthermore, the product is shielded with yes. The core is manufactured from highly durable and reliable we-superflux materials. The product has a 5.5 μh inductance value. wirewound surface mount inductor is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 150°c. In addition, it is moulded yes . While it carries 10a of maximum DC current. Its accurate length is 10.5mm. It contains 2 pins. Concerning its package and casing, it is 1050. It allows up to 10.3mω maximum DC resistance. The product we-hci, is a highly preferred choice for users. The product comes in 10.2mm depth. In addition, the height is 4.7mm. In addition, tape & reel is the available packaging type of the product. Whereas, the minimum operating temperature of the product is -40°c.

pdf icon
8 Design Tips for Power Inductors from Wurth Elektronik - Application Note(Technical Reference)
pdf icon
Wurth Elektronik 744325550 WE-HCI Inductor Datasheet(Technical Reference)
pdf icon
WE eiSos Embedded Flyer(Technical Reference)
