Manufacturer : Sanyo Denki
Manufacturer Part No : 103H5208-5210
Enrgtech Part No : ET16798787
Product Range : PolySwitch RXEF Series

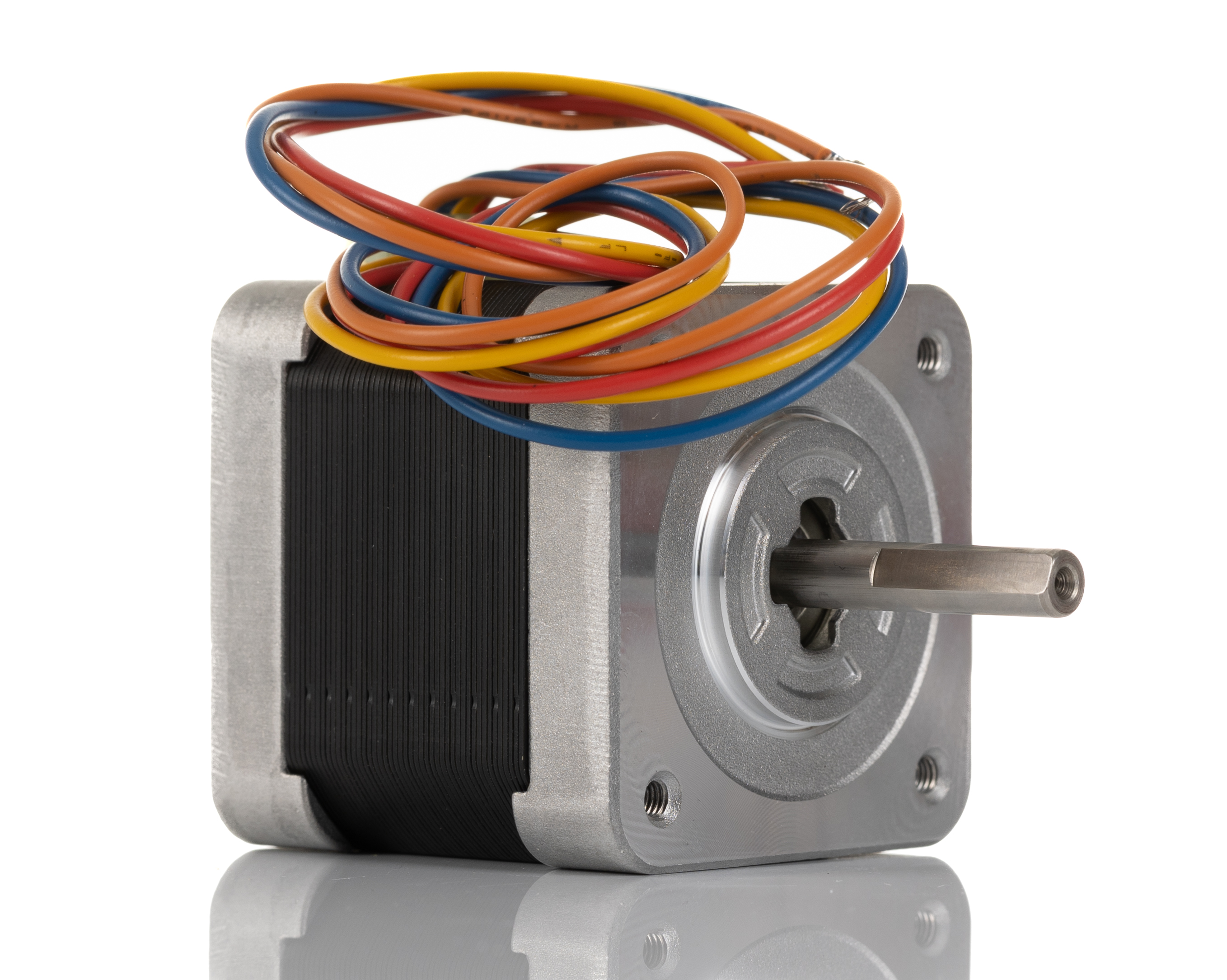

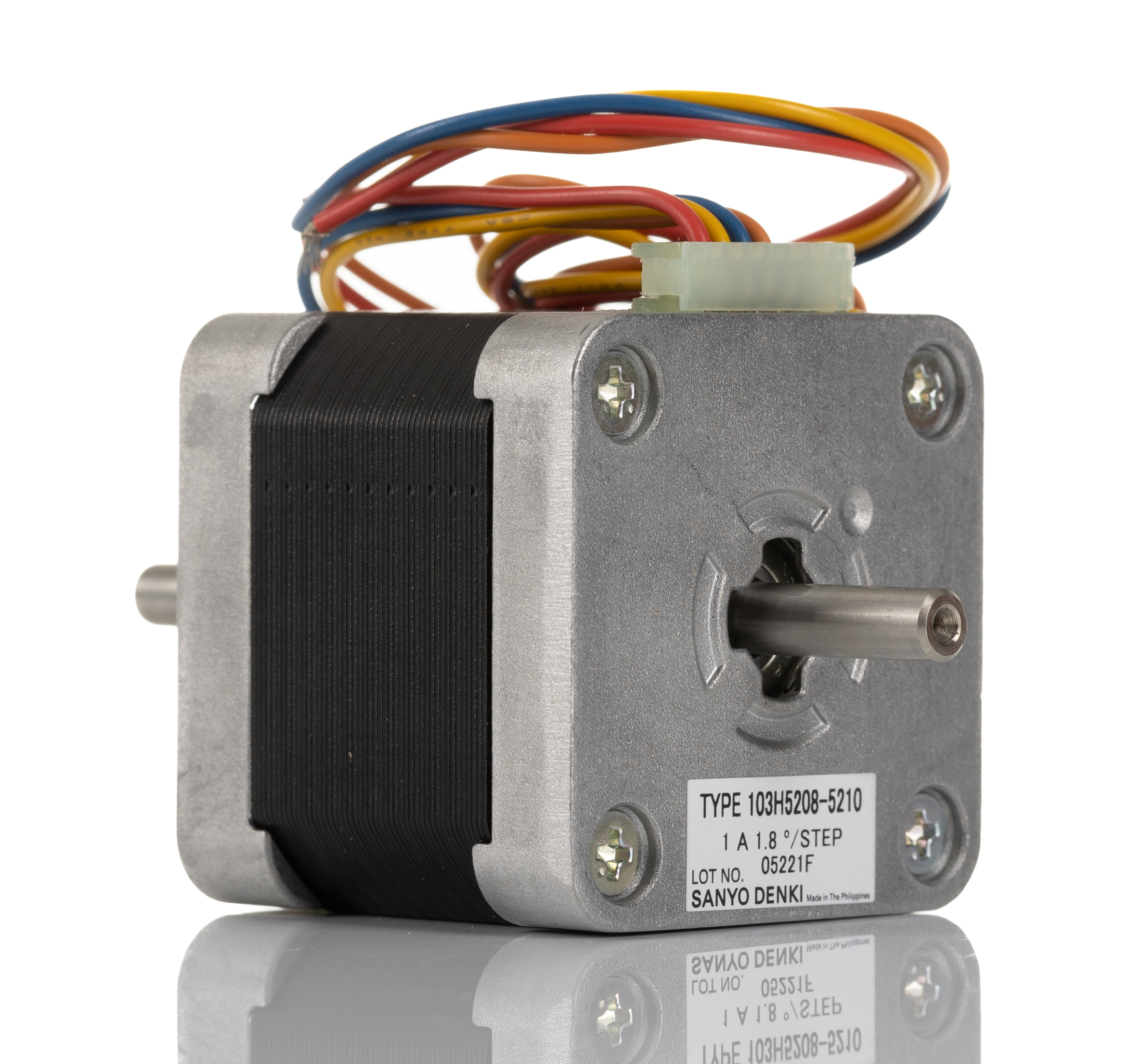

Sanyo Denki Bipolar Bipolar, Unipolar Stepper Motor 1.8°, 0.39nm, 24 V dc, 1 A, 4 Wires

Sanyo Denki Sanmotion 103H5 Series Stepper Motor Sany Denki range of Stepper Motors providing the user with a comprehensive range of options to ensure your application is covered Offered in both Unipolar & Bipolar winding options Single round and double round shaft designs with adequate length providing the user with a simple mounting solution Leaded options also available Sanyo Denki Stepper Motor

Product Information

Frame Size : 42 x 42mm
Holding Torque : 0.39Nm
Current Rating : 1 A
Step Angle : 1.8°
Voltage Rating : 24 V dc
Series : 103H5
Number Of Wires : 4
Stepper Motor Type : Bipolar, Unipolar
Winding Arrangement : Bipolar
Depth : 40.5mm
Shaft Diameter : 5mm
Shaft Length : 22.5mm
Resistance Per Phase : 4.1Ω
rohs : RoHS Certificate of Compliance
Standards Met : CE, CULus, RoHS Compliant, TUV

Technical Documents

  • 103H5208-5210 Stepper Motor Data Sheet (Technical Reference)

Availability:
29
in stock
Check now

Rate:
  • 1-4
    +
    £ 31.649
  • 5-9
    +
    £ 30.672
  • 10
    +
    £ 30.004

Qty:
