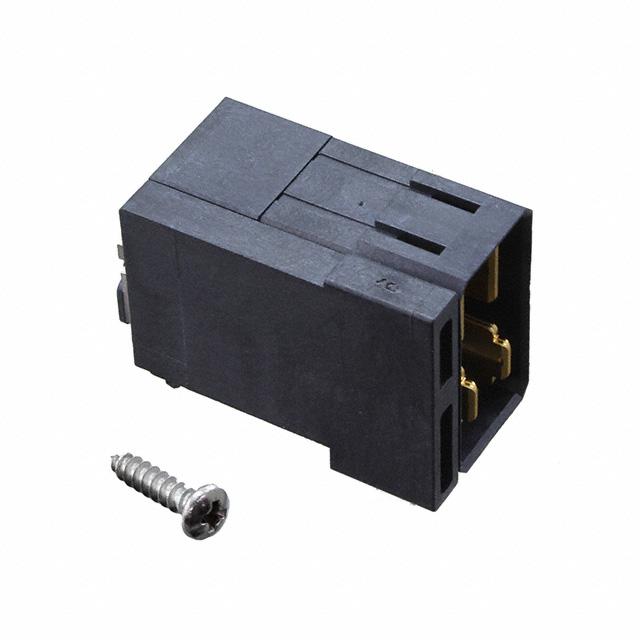

Molex 0783491004

0783491004 Molex
0783491004
Molex

Product Information

HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 85°C
Connector Style:
Impact, Hold Down Left
Contact Finish Thickness:
30.0µin (0.76µm)
Number of Positions:
4
Connector Usage:
-
title:
0783491004
REACH Status:
REACH Unaffected
edacadModel:
0783491004 Models
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/5116476
Manufacturer:
Molex
Number of Columns:
-
Contact Layout, Typical:
4 Power
Voltage Rating:
250V
Connector Type:
Header, Male Blades
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Press-Fit
standardLeadTime:
12 Weeks
Current Rating (Amps):
-
Features:
-
Mounting Type:
Board Edge, Through Hole, Right Angle
Color:
Black
Series:
Impact 78349
Packaging:
Tray
Pitch:
-
Number of Positions Loaded:
All
Base Product Number:
078349
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0783491004. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 85°c operating temperature range. It comes in impact, hold down left connector style. It has 30.0µin (0.76µm) of contact finishing thickness. The product carries possible position value of 4. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. The molex's product offers user-desired applications. The typical contact layout includes 4 power. Moreover, the product has a nominal 250v voltage rating. header, male blades Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features press-fit termination style. It has a long 12 weeks standard lead time. The product is available in board edge, through hole, right angle configuration. It has a classic black colour. The product impact 78349, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. However, all is the Number of Positions Loaded. Moreover, it corresponds to 078349, a base product number of the product. The product is designated with the ear99 code number.
