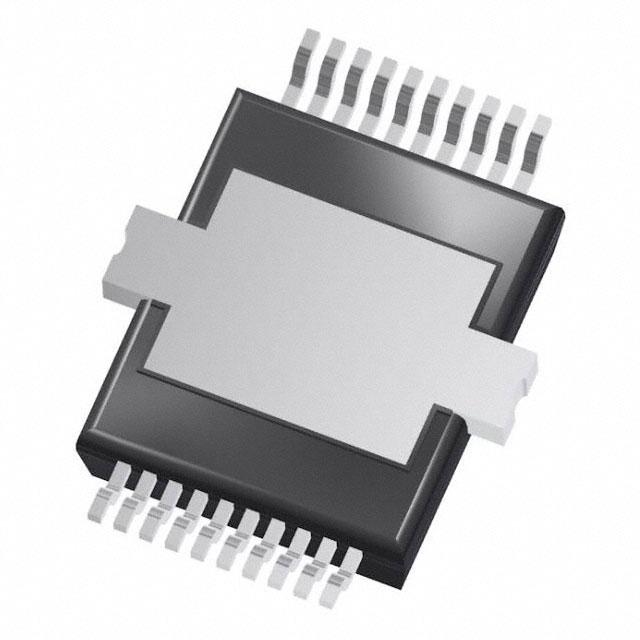

Infineon Technologies TLE9104SHXUMA1

TLE9104SHXUMA1 Infineon Technologies
TLE9104SHXUMA1
Infineon Technologies

Product Information

HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Supplier Device Package:
PG-DSO-20-88
Ratio - Input:Output:
1:1
Operating Temperature:
-40°C ~ 150°C
Current - Output (Max):
3A
Input Type:
Non-Inverting
Package / Case:
20-BFSOP (0.295", 7.50mm Width) Exposed Pad
Voltage - Supply (Vcc/Vdd):
3V ~ 5.5V
REACH Status:
REACH Unaffected
Output Type:
N-Channel
edacadModel:
TLE9104SHXUMA1 Models
edacadModelUrl:
/en/models/8627206
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Interface:
SPI
standardLeadTime:
26 Weeks
Features:
Slew Rate Controlled, Status Flag
Mounting Type:
Surface Mount
Series:
-
Voltage - Load:
50V ~ 60V
Fault Protection:
Current Limiting (Fixed), Open Load Detect, Over Temperature, Reverse Battery, Short Circuit
Base Product Number:
TLE9104
Rds On (Typ):
150mOhm
Output Configuration:
Low Side
ECCN:
EAR99
Number of Outputs:
4
Switch Type:
General Purpose
Checking for live stock

This is manufactured by Infineon Technologies. The manufacturer part number is TLE9104SHXUMA1. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. pg-dso-20-88 is the supplier device package value. The ratio between its input and output is 1:1. The product has -40°c ~ 150°c operating temperature range. The maximum product's output current is 3a. It carries non-inverting input type. Moreover, the product comes in 20-bfsop (0.295", 7.50mm width) exposed pad. The supply voltage of a bespoke product includes 3v ~ 5.5v. In addition, it is reach unaffected. Furthermore, it has an-channel output. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 3 (168 hours). A bespoke product is spi interface. It has a long 26 weeks standard lead time. The splendid features of the product include slew rate controlled, status flag. The product is available in surface mount configuration. The given load voltage is 50v ~ 60v. Fault protection features include current limiting (fixed), open load detect, over temperature, reverse battery, short circuit. Moreover, it corresponds to tle9104, a base product number of the product. The typical Rds On of the product is 150mohm. It boasts low side output configuration. The product is designated with the ear99 code number. Additionally, the product is supplied with 4 outputs. Quality product with a general purpose switch type.

pdf icon
TLE9104SH Datasheet*(Datasheets)
pdf icon
Mult Dev Cover Tape Chg 13/Jul/2022(PCN Packaging)
pdf icon
Mult Dev Label Chgs 11/Jan/2018(PCN Packaging)
