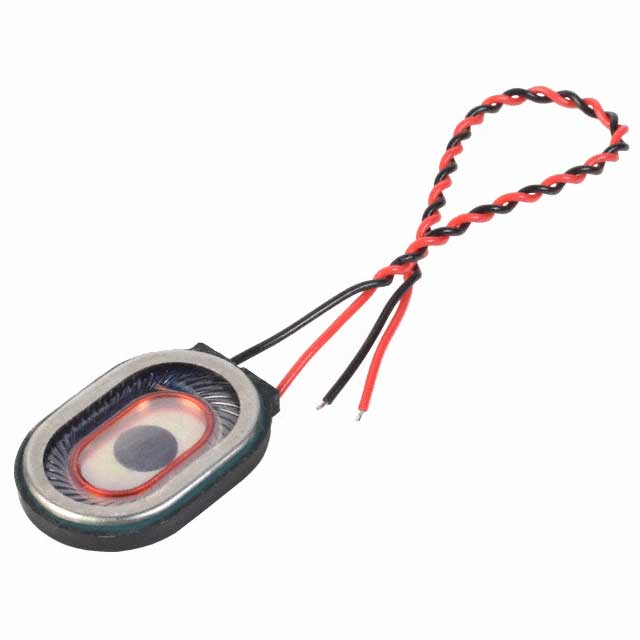

CUI Devices CDS-20144-L100

CDS-20144-L100 CUI Devices
CDS-20144-L100
CUI Devices

Product Information

Lead Length:
20mm
Sound Level:
92dB
Rated Power:
1W
Cone Material:
Mylar
Manufacturer Standard Lead Time:
14 Weeks
Frequency Range:
480Hz ~ 20kHz
Port Location:
Top
Power - Rated:
1W
Efficiency - Testing:
1W/100mm
Type:
General Purpose
Base Part Number:
CDS-20
Detailed Description:
4 Ohms General Purpose Speaker 1W 480Hz ~ 20kHz Top Oval
Height - Seated (Max):
0.138" (3.50mm)
Efficiency - Type:
Sound Pressure Level (SPL)
Material - Magnet:
Nd-Fe-B
Manufacturer:
CUI Devices
Material - Cone:
Polyester, Polyethylene Terephthalate (PET)
Efficiency - dBA:
92.00
Size / Dimension:
0.787" L x 0.551" W (20.00mm x 14.00mm)
Impedance:
4 Ohms
Termination:
Wire Leads
Frequency - Self Resonant:
600Hz
Series:
CDS
Packaging:
Tray
Shape:
Oval
Power - Max:
1.2W
Customer Reference:
Technology:
Magnetic
RoHs Compliant
Checking for live stock

This is manufactured by CUI Devices. The manufacturer part number is CDS-20144-L100. The lead is 20mm long. Its sound level is about 92db . It has about 1w rated power . mylar is the cone material of the product . It has typical 14 weeks of manufacturer standard lead time. The frequency range includes 480hz ~ 20khz. Port location: top. It features a power rating of 1w. Additionally, its testing efficiency is 1w/100mm. It comes in general purpose configuration. Base Part Number: cds-20. It features 4 ohms general purpose speaker 1w 480hz ~ 20khz top oval. It has the maximum seated height of 0.138" (3.50mm). It possesses sound pressure level (spl) efficiency. The magnet is manufactured from nd-fe-b material. The cui devices's product offers user-desired applications. While the cone is designed from polyester, polyethylene terephthalate (pet) materials. It bears 92.00 efficiency -dBA. The product's diameters include 0.787" l x 0.551" w (20.00mm x 14.00mm). It has an impedance value of 4 ohms. The product features wire leads termination style. 600hz is the self-resonant frequency of the product. The product cds, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It is a oval product with unique specifications. The maximum power of the product is 1.2w. This product use magnetic technology.

pdf icon
Datasheet - CDS-20144-L100(Technical Reference)
pdf icon
CDS-20144-L100 Datasheet(Datasheets)
pdf icon
Understanding and Measuring Sensitivity in Audio Components(Application Notes)
pdf icon
How to Design a Micro Speaker Enclosure(Application Notes)
