Image is for illustrative purposes only.
Please refer to product description.


Manufacturer : RS Pro
Manufacturer Part No : 534-705
Enrgtech Part No : ET10002647
Product Range : PolySwitch RXEF Series

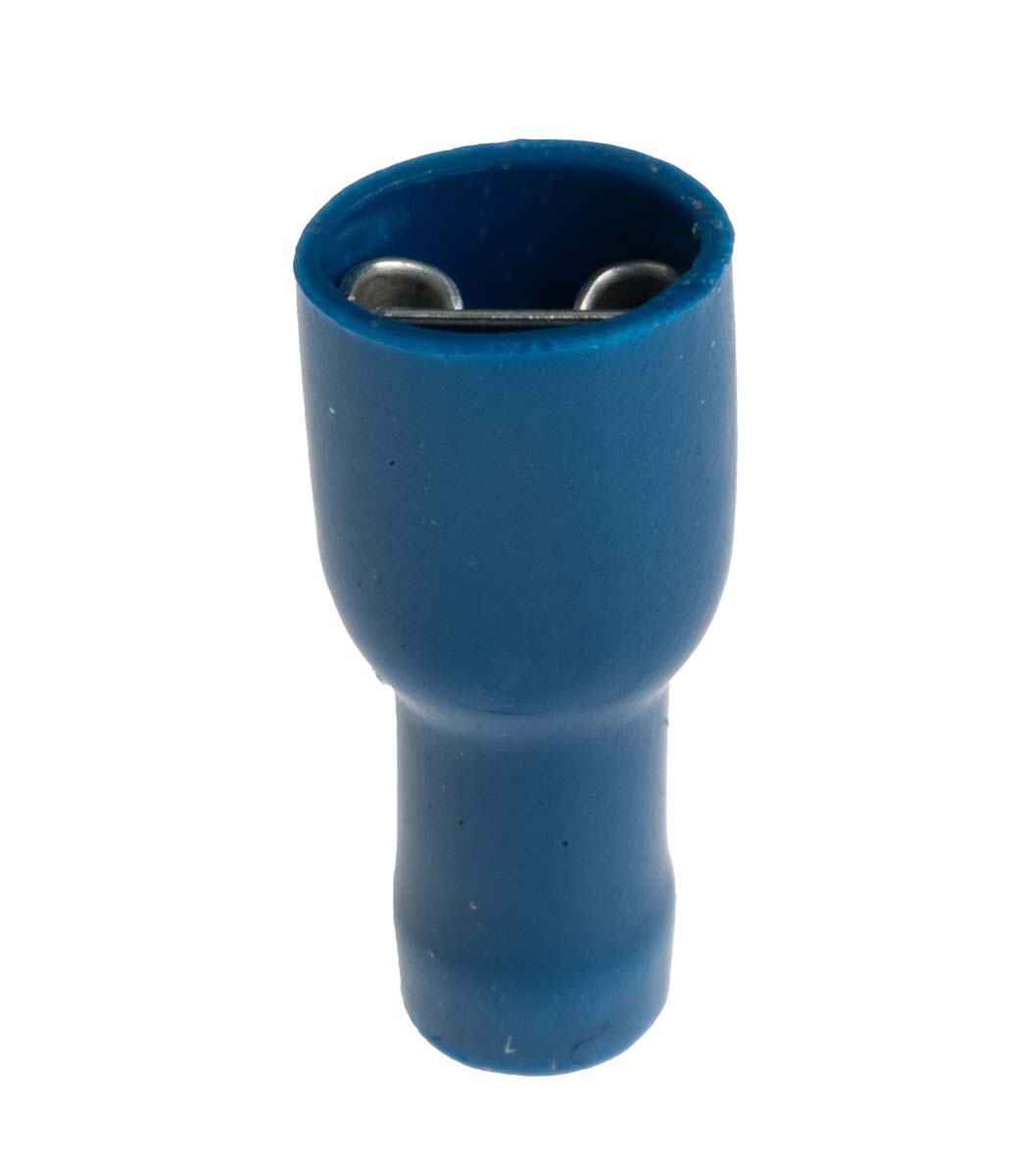

RS Pro Blue Insulated Crimp Receptacle, 6.3 x 0.8mm, 1.5mm² to 2.5mm², 16AWG to 14AWG, Tin Plated

RS Pro Fully Insulated Double Crimp Receptacle Terminals From RS Pro, A range of fully insulated double crimp female receptacle terminals made from brass with a copper sleeved barrel and flared vinyl or nylon insulation. These shrouded female receptacle crimp connectors are colour coded for use with different wire sizes and accept various tab sizes. For suitable crimp tool, see stock number 267-3133 Features & Benefits Red 0.5 - 1.5 mm² Blue 1 - 2.6 mm² Yellow 2.5 - 6.5 mm² Approvals UL Listed RS Pro Range Technical Specification Temperature rating +70°C Body Material Copper Body Plating Tin

Product Information

Maximum Wire Size mm² : 2.5mm²
Gender : Female
Colour : Blue
Termination Method : Crimp
Minimum Wire Size AWG : 16AWG
Tab Size : 6.3 x 0.8mm
Insulation Material : Vinyl
Contact Plating : Tin
Overall Length : 21.5mm
Insulation : Insulated
Maximum Wire Size AWG : 14AWG
Minimum Wire Size mm² : 1.5mm²
rohs : RoHS Certificate of Compliance
Contact Material : Brass

Technical Documents

  • Datasheet (Technical Reference)

Availability:
1158
in stock
Check now

Rate:
  • 1-99
    +
    £ 11.856
  • 100-499
    +
    £ 10.678
  • 500-2499
    +
    £ 9.490

Qty:
