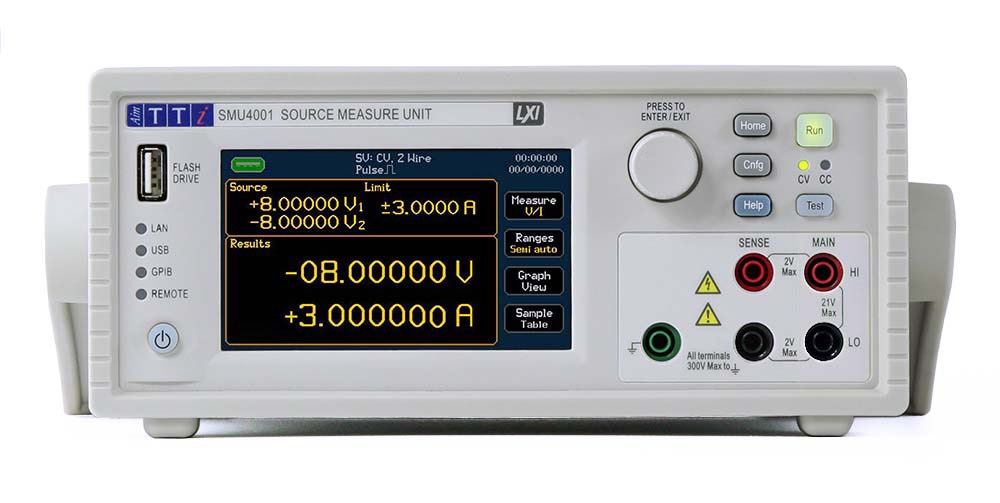

Aim-TTi SMU4000 Series Source Meter, 10nV → 20v, 1 Channel(s), 100fA → 3A, 25W Output

SMU4001 Aim-TTi SMU4000 Series Source Meter, 10nV → 20v, 1 Channel(s), 100fA → 3A, 25W Output
SMU4001
SMU4001
SMU4001 Aim-TTi SMU4000 Series Source Meter, 10nV → 20v, 1 Channel(s), 100fA → 3A, 25W Output
Aim-TTi

Product Information

Resistance Measurement Range:
1μ? to 10G
Series:
SMU4000
Source Current Range:
200 nA → 3 A
Output Power:
25W
Number of Channels:
1
Source Voltage Range:
20 mV → 20 V
RoHs Compliant
Checking for live stock

The SMU4000 Series provides class leading performance at a new and affordable price point for a four quadrant SMU. 8 EasySet configurations give users quick setup for Power Supply, Current Source, Load, Voltmeter, Ammeter, Ohmeter, Insulation Resistance meter and Leakage current meter. The Aim-TTi PowerFlex Autorange system provides a semi constant power characteristic so that the current capability rises as the voltage reduces. The SMU4000 achieves full instrument output power across the voltage range, unlike conventional SMUs where the maximum power can only be achieved at the top of each voltage range. Combining high current and power with fast measurements and low glitch auto ranging speed, the SMU4000 Series has built-in sweep functions including: Constant and pulsed sweep operation, double sweep functions and linear & logarithmic. Test Bridge SMU that provides full programmable control of multiple SMU’s alongside additional enhanced features is available for free download. Features and benefits 4 quadrant Source Sink & Measure ±20V ±3A Powerflex Autorange 01μV &100fA resolution 25W 3A PowerFlex Autorange SMU Link 2 channel operation Applications Fast Agile high power 4 quadrant Voltage /Current, Resistance and Power measurements Supplied with: Test Bridge SMU software USB Cable What other Source Meters are available in this Aim-TTi range? PSA4201

pdf icon
Application Note - Characterizing Transistors and Field Effect Transistors Using Two SMUs(Technical Reference)
pdf icon
Datasheet - SMU4001(Technical Reference)
pdf icon
Manual - SMU4000 Series(Technical Reference)
pdf icon
Catalogue - Test and Measurement Instruments(Technical Reference)
