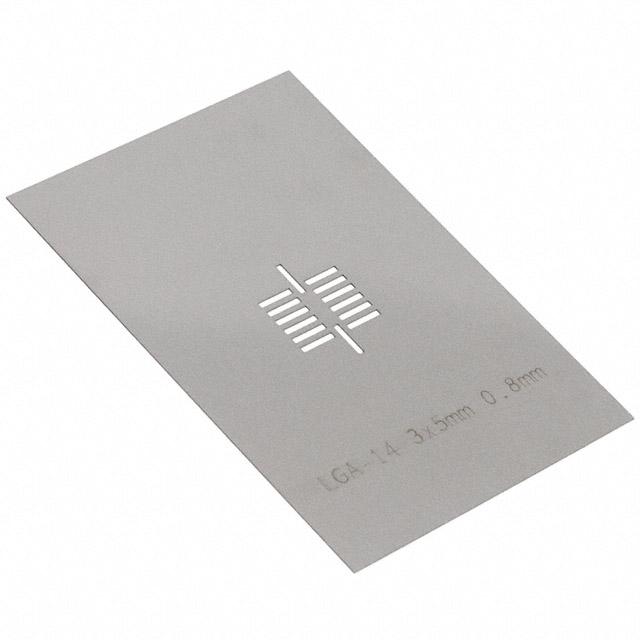

Chip Quik Inc. PA0101-S

PA0101-S Chip Quik Inc.
Chip Quik Inc.

Product Information

Material:
Stainless Steel
HTSUS:
8515.19.0000
RoHS Status:
ROHS3 Compliant
Thickness:
0.0040" (0.102mm)
Type:
LGA
Number of Positions:
14
Outer Dimension:
1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:
0.197" L x 0.118" W (5.00mm x 3.00mm)
REACH Status:
REACH Unaffected
Manufacturer:
Chip Quik Inc.
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
2 Weeks
Series:
Proto-Advantage PA
Packaging:
Bulk
Thermal Center Pad:
-
Pitch:
0.031" (0.80mm)
Base Product Number:
PA0101
ECCN:
EAR99
Checking for live stock

This is manufactured by Chip Quik Inc.. The manufacturer part number is PA0101-S. The product is made from highly stable and reliable stainless steel. It is assigned with possible HTSUS value of 8515.19.0000. The product is rohs3 compliant. It is 0.0040" (0.102mm) thick. It comes in lga configuration. The product carries possible position value of 14. Outer dimensions are 1.300" l x 0.900" w (33.02mm x 22.86mm). Inner dimensions include - [Inner Dimensions]. In addition, it is reach unaffected. The chip quik inc.'s product offers user-desired applications. Its typical moisture sensitivity level is 1 (unlimited). It has a long 2 weeks standard lead time. The product proto-advantage pa, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. Moreover, the product is 0.031" (0.80mm). Moreover, it corresponds to pa0101, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
PA0101-S(Datasheets)
pdf icon
Circuit Assembly Instr(Datasheets)
pdf icon
Stencil Selection Guilde(Datasheets)
