Name: TCST1103, Vishay
Brand: Vishay
SKU: ET16723888
Price: 0.48 GBP
Availability: InStock

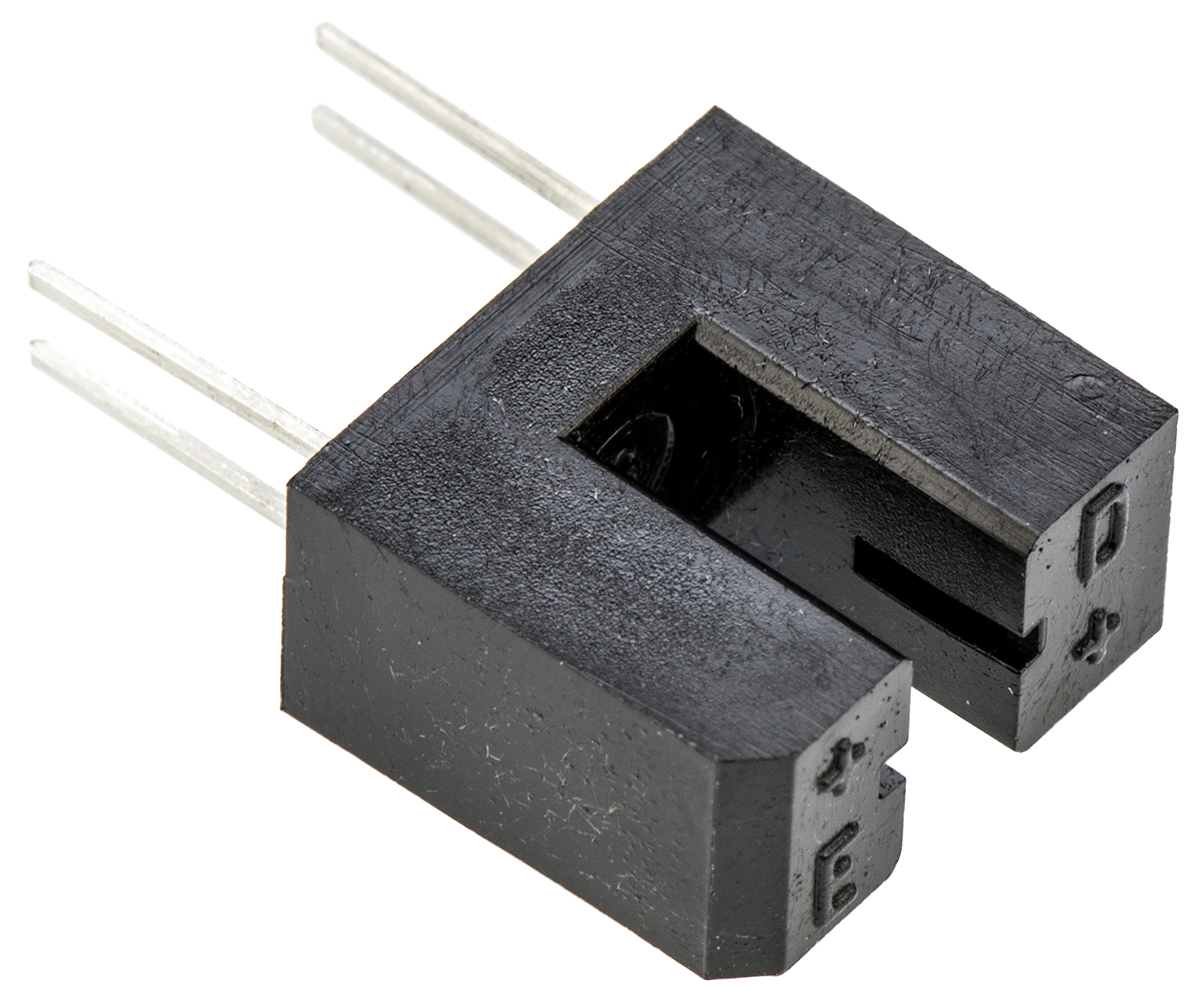

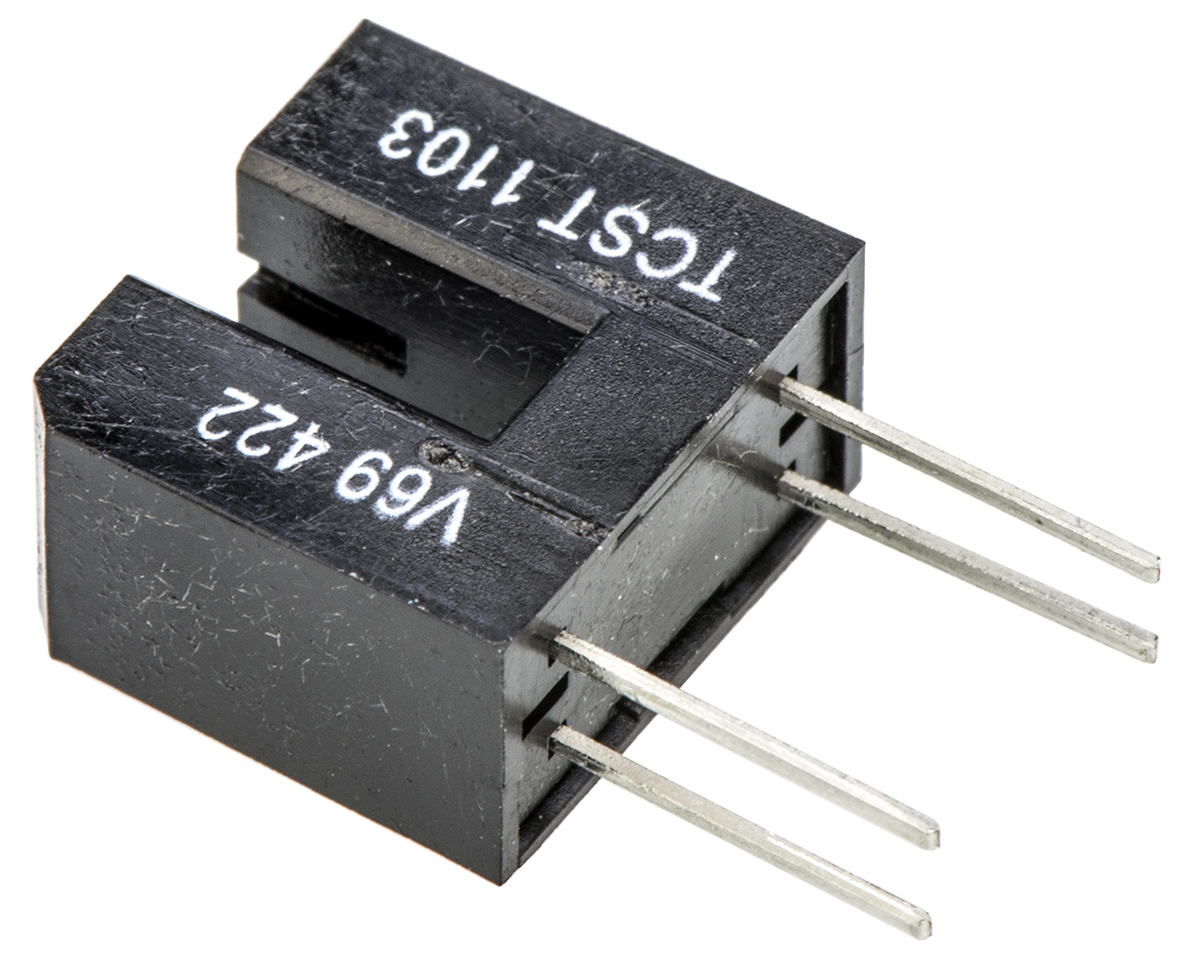

TCST1103 Vishay Through Hole Slotted Optical Switch, Phototransistor Output

(0)

Product Information

Output Device:

Phototransistor

Minimum Operating Temperature:

-55°C

Typical Fall Time:

8μs

Typical Rise Time:

10μs

Height:

11.1mm

Packaging:

Tube

Width:

6.3 mm

Length:

11.9mm

Package Type:

Leaded

Standards/Approvals:

RoHS

Number of Channels:

Number of Pins:

Checking for live stock

The Vishay TCST1103 is a compact, transmissive optical switch engineered for reliable non-contact sensing in a variety of automated systems. It features an infrared emitter and a phototransistor detector mounted face-to-face within a durable, leaded package that effectively blocks ambient light. With a 3.1mm slot width and a 1mm aperture, this slotted optical switch provides precise object detection and high-speed switching. Its robust design and through-hole mounting make it a dependable choice for space-constrained PCB layouts.

Why Choose the Switch?

This Vishay TCST1103 slotted optical switch provides highly accurate position feedback and speed monitoring with its daylight-blocking filter, ensuring reliable performance under various lighting conditions.

Delivers high-speed response times for efficient industrial automation.
Compact form factor, allowing seamless integration into small devices.

Key Features of the Product

Standard 3.1mm gap for versatile object detection.
Built-in daylight blocking filter to prevent signal interference.
Leaded package designed for secure through-hole PCB mounting.
Typical output current of 4mA for clear signal processing.
RoHS-compliant and lead-free construction for environmental safety.

Suitable Environments

Office equipment such as printers, scanners, and copiers.
Industrial counting systems and rotary encoder applications.
Automated manufacturing lines for part presence detection.
Robotics and embedded systems requiring precise motion feedback.
