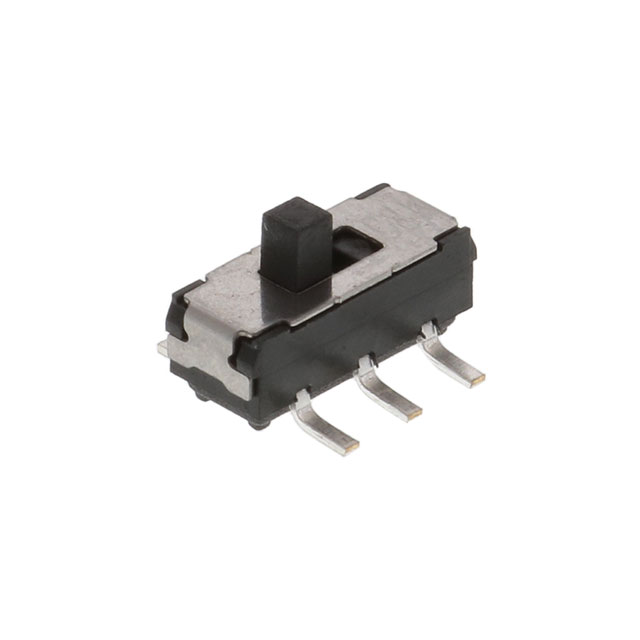

C&K JS202011SCQN

Enrgtech Part No: ET11778106
|
Manufacturer Part No:
JS202011SCQN
|
Manufacturer: C&K

Product Information

Contact Resistance:

70mΩ

Dimensions:

9 x 3 x 5.5mm

Mounting Type:

Surface Mount

Voltage Rating:

6V dc

Contact Current Rating:

300 mA

Minimum Operating Temperature:

-40°C

Contact Configuration:

DPDT

Length:

9mm

Actuator Material:

Nylon

Width:

3mm

Depth:

5.5mm

Actuator Type:

Slide

Checking for live stock

The C&K JS202011SCQN is a high-performance slide switch that belongs to the broad category of electromechanical switches. It is specifically designed to offer reliable and versatile switching solutions in various electronic applications. This switch is characterised by its Double Pole Double Throw (DPDT) configuration, making it suitable for more complex circuitry where control of two separate circuits is necessary. Its DPDT configuration, coupled with a durable and compact design, makes it perfect for complex electronic circuitry where space and reliability are critical.

Design and Construction

The C&K JS202011SCQN switch features a compact, surface-mount design, which is integral for modern electronic devices where space is at a premium. The surface mount technology (SMT) ensures that the switch can be directly mounted on the surface of printed circuit boards (PCBs), facilitating efficient use of space and easier integration into various electronic assemblies.

Core Features and Benefits of the Slide Switch

Typically rated for low voltage and current applications
Optimised for compactness, suitable for PCB mounting.
Suitable for various ambient temperatures, ensuring reliability under different environmental conditions.
The DPDT configuration allows for the control of two separate circuits simultaneously.
Its surface mount design offers a space-saving solution, crucial for modern.
The switch is designed for easy integration into PCBs, simplifying the assembly process and reducing manufacturing complexities.
Constructed with high-quality materials, the switch is built to withstand a significant number of cycles.

The C&K JS202011SCQN: Wide Application Range

The C&K JS202011SCQN slide switch is a versatile, reliable, and space-efficient component, well-suited for a wide array of applications in multiple industries, such as:

Consumer Electronics: Ideal for use in portable electronic devices, such as audio players, where space is limited, and efficient use of the PCB is essential.
Industrial Controls: Suitable for control panels and industrial equipment where reliable switching is necessary.
Medical Devices: The switch's reliability and compact size make it an excellent choice for various medical devices, where precision and durability are paramount.
Automotive Sector: Utilised in automotive electronics, where robust and reliable switching solutions are required to withstand the rigours of automotive environments.

Datasheet(Technical Reference)

C&K RoHS/REACH(Environmental Information)

Design chg 30/MAY/2022(PCN Design/Specification)

JS Series Slide Datasheet(Datasheets)
