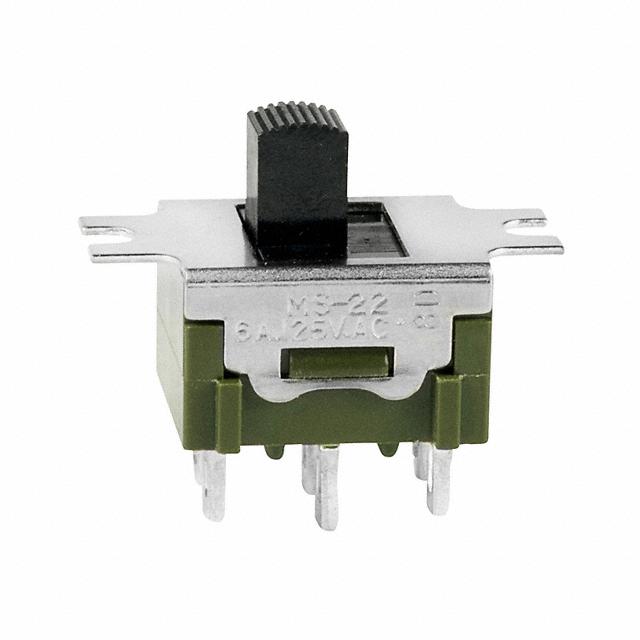

This is manufactured by NKK Switches. The manufacturer part number is MS22AFW01. It features a 10mω contact resistance. The given dimensions of the product include 11.5 x 12.7 x 6.6mm. The product is available in panel mount configuration. Moreover, the product has a nominal 125 v ac, 250v ac voltage rating. The rated contact current is 3 a @ 250 v ac, 6 a @ 125 v ac. Whereas, the minimum operating temperature of the product is -30°c. The contact is equipped with dpdt configuration. Its accurate length is 12.7mm. The actuator is designed from sturdy glass fibre reinforced pbt resin material. The product has -30 → +85°c of operating temperature range. Furthermore, the product is 11.5mm wide. The product comes in 6.6mm depth. The product carries top actuator. The product also provide mechanical stability with 100000cycles. It provides latching switch operation. It has a maximum operating temperature of +85°c. The terminal is a solder lug type. The product is made from sturdy silver alloy materials. It is assigned with possible HTSUS value of 8536.50.9050. The product is rohs3 compliant. The product offers long-lasting services of 25,000 cycles. Moreover, it has solder lug terminal style. The product has -30°c ~ 85°c operating temperature range. The product also provide mechanical stability with 100,000 cycles. The actuator is a 5.10mm long. The product exhibits 125 v of AC voltage rating. In addition, it is reach unaffected. It is shipped in tray package . It is designed as a on-on switching function. Furthermore, the product is galvanized with excellent silver contact finishing. Its typical moisture sensitivity level is 1 (unlimited). It has an integral dpdt circuit. Additionally, the product's output is 6a (ac). Contact Timing Options: non-shorting (bbm). The splendid features of the product include epoxy sealed terminals. The product ms, is a highly preferred choice for users. The product has a switching travel of 2.20mm. The product carries standard actuator. The actuator is designed from sturdy polybutylene terephthalate (pbt), glass filled material. The product is designated with the ear99 code number.
Multiple Series Marking 07/Feb/2016(PCN Assembly/Origin)
MS Series Movable Contact Matl 02/Mar/2012(PCN Design/Specification)
Obsolete 09/MAY/2023(PCN Obsolescence/ EOL)
MS Series Miniature Slides Datasheet(Datasheets)
