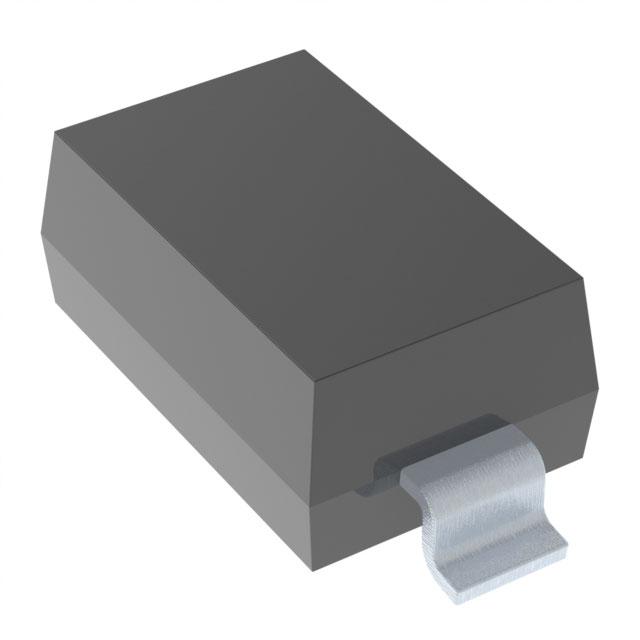

Fairchild Zener Diode, 27V 5% 500 mW SMT 2-Pin SOD-123
Product Information
Nominal Zener Voltage:
27V
Dimensions:
2.85 x 1.8 x 1.18mm
Mounting Type:
Surface Mount
Maximum Zener Impedance:
41Ω
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
0.1µA
Maximum Power Dissipation:
500 mW
Height:
1.18mm
Width:
1.8mm
Length:
2.85mm
Zener Type:
General Purpose
Number of Elements per Chip:
1
Package Type:
SOD-123
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
4.6mA
Moisture Sensitivity Level (MSL):
Vendor Undefined
Voltage - Zener (Nom) (Vz):
27 V
Mounting Type:
Surface Mount
Package:
Bulk
Series:
-
Impedance (Max) (Zzt):
25 Ohms
REACH Status:
REACH Unaffected
Supplier Device Package:
SOD-123
Power - Max:
500 mW
Package / Case:
SOD-123
Operating Temperature:
-
Tolerance:
±5%
Checking for live stock
FAQs
Yes. You can also search MMSZ5254B on website for other similar products.
We accept all major payment methods for all products including ET14054853. Please check your shopping cart at the time of order.
You can order Fairchild Semiconductor brand products with MMSZ5254B directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Single Zener Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Fairchild Zener Diode, 27V 5% 500 mW SMT 2-Pin SOD-123. You can also check on our website or by contacting our customer support team for further order details on Fairchild Zener Diode, 27V 5% 500 mW SMT 2-Pin SOD-123.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14054853 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Fairchild Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14054853.
Yes. We ship MMSZ5254B Internationally to many countries around the world.
This is Fairchild Zener Diode 27V 5% 500 mW SMT 2-Pin SOD-123 manufactured by Fairchild Semiconductor. The manufacturer part number is MMSZ5254B. Its nominal Zener voltage is 27v. The given dimensions of the product include 2.85 x 1.8 x 1.18mm. The product is available in surface mount configuration. While it has 41ω of maximum Zener impedance. It has a maximum operating temperature of +150 °c. The product has a maximum 0.1µa of reverse leakage current. Provides up to 500 mw maximum power dissipation. In addition, the height is 1.18mm. Furthermore, the product is 1.8mm wide. Its accurate length is 2.85mm. The Zener is a type of general purpose Zener with unique features. It consists of 1 elements per chip. The package is a sort of sod-123. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 4.6ma test current. Its typical moisture sensitivity level is vendor undefined. The nominal voltage of the Zener includes 27 v. It is shipped in bulk package . Moreover, 25 ohms is the maximum impedance value of the product. In addition, it is reach unaffected. sod-123 is the supplier device package value. The maximum power of the product is 500 mw. Moreover, the product comes in sod-123. It features ±5% of tolerance value.
