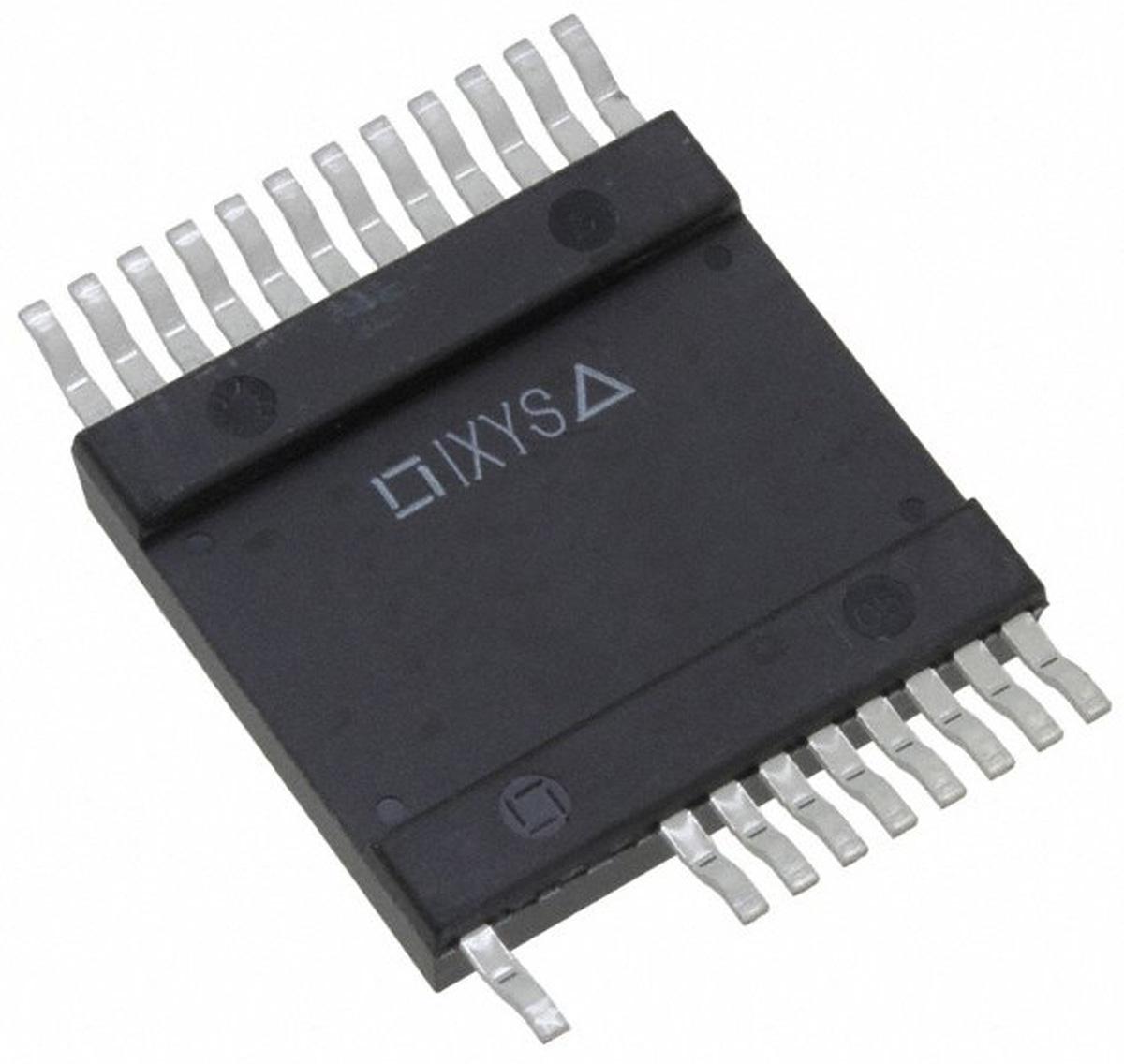

IXYS MMIX1Y100N120C3H1
Product Information
Dimensions:
25.2 x 23.3 x 5.7mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
400 W
Maximum Collector Emitter Voltage:
1200 V
Channel Type:
N
Maximum Continuous Collector Current:
92 A
Maximum Gate Emitter Voltage:
±30V
Package Type:
SMPD
Minimum Operating Temperature:
-55 °C
Switching Speed:
20 → 50kHz
Gate Capacitance:
6000pF
Maximum Operating Temperature:
+150 °C
Pin Count:
24
Transistor Configuration:
Single
Current - Collector (Ic) (Max):
92 A
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Switching Energy:
6.5mJ (on), 2.9mJ (off)
Vce(on) (Max) @ Vge, Ic:
3.5V @ 15V, 100A
Voltage - Collector Emitter Breakdown (Max):
1200 V
Td (on/off) @ 25°C:
48ns/123ns
Operating Temperature:
-55°C ~ 175°C (TJ)
Input Type:
Standard
Package / Case:
24-PowerSMD, 21 Leads
Gate Charge:
270 nC
Reverse Recovery Time (trr):
420 ns
REACH Status:
REACH Unaffected
Test Condition:
600V, 100A, 1Ohm, 15V
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
57 Weeks
IGBT Type:
-
Current - Collector Pulsed (Icm):
440 A
Mounting Type:
Surface Mount
Series:
GenX3™, XPT™
Supplier Device Package:
24-SMPD
Power - Max:
400 W
Base Product Number:
MMIX1Y100
ECCN:
EAR99
