Forward Voltage Vf:
1.5V
Width:
10.4 mm
Automotive Standard:
No
Typical Gate Charge Qg @ Vgs:
7nC

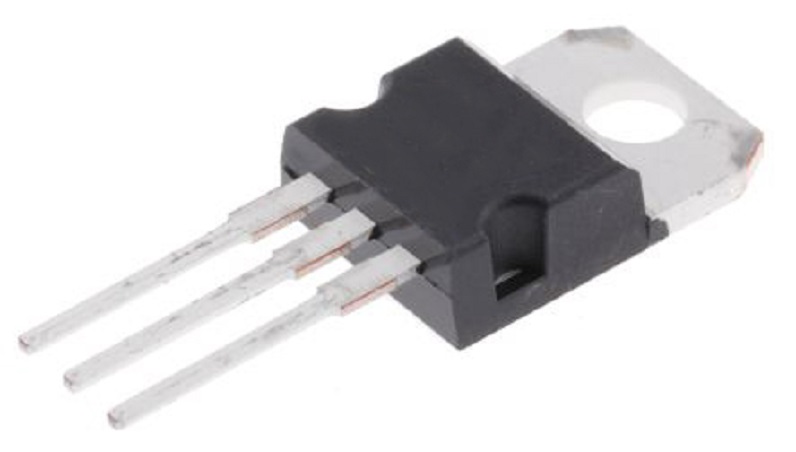

Package Type:
TO-220
Maximum Continuous Drain Current Id:
6A
Product Type:
MOSFET
Maximum Drain Source Resistance Rds:
900mΩ
Maximum Operating Temperature:
150°C
Maximum Drain Source Voltage Vds:
800V
Channel Type:
Type N
Length:
28.9mm
Standards/Approvals:
RoHS
Pin Count:
3
Mount Type:
Through Hole
Maximum Power Dissipation Pd:
68W
Channel Mode:
Enhancement
Maximum Gate Source Voltage Vgs:
30 V
Series:
STP
Height:
4.6mm
Minimum Operating Temperature:
-55°C
FET Feature:
-
Vgs(th) (Max) @ Id:
4V @ 50µA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
TO-220-3
Gate Charge (Qg) (Max) @ Vgs:
7 nC @ 10 V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
Rds On (Max) @ Id, Vgs:
900mOhm @ 2A, 10V
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
10V
Package:
Bulk
Drain to Source Voltage (Vdss):
800 V
Vgs (Max):
±30V
Input Capacitance (Ciss) (Max) @ Vds:
362 pF @ 400 V
standardLeadTime:
16 Weeks
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TO-220
Current - Continuous Drain (Id) @ 25°C:
6A (Tc)
Power Dissipation (Max):
68W (Tc)
Technology:
MOSFET (Metal Oxide)
