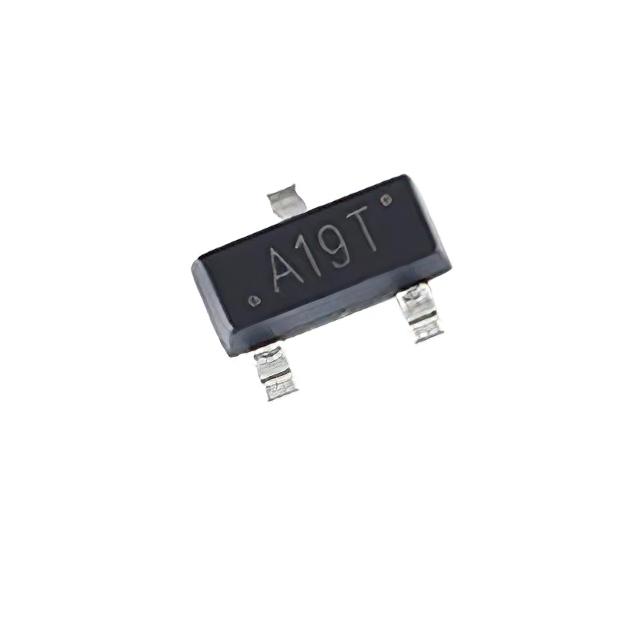

UMW AO3401A

AO3401A UMW
AO3401A
UMW

Product Information

FET Feature:
-
HTSUS:
8541.21.0095
Vgs(th) (Max) @ Id:
1.3V @ 250µA
Operating Temperature:
150°C (TJ)
Package / Case:
TO-236-3, SC-59, SOT-23-3
Gate Charge (Qg) (Max) @ Vgs:
9.4 nC @ 4.5 V
Rds On (Max) @ Id, Vgs:
50mOhm @ 4.2A, 10V
FET Type:
P-Channel
Drive Voltage (Max Rds On, Min Rds On):
2.5V, 10V
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
30 V
Vgs (Max):
±12V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
1.4W (Ta)
Input Capacitance (Ciss) (Max) @ Vds:
954 pF @ 15 V
standardLeadTime:
1 Weeks
Mounting Type:
Surface Mount
Series:
UMW
Supplier Device Package:
SOT-23
Current - Continuous Drain (Id) @ 25°C:
4.2A (Ta)
Technology:
MOSFET (Metal Oxide)
ECCN:
EAR99
Checking for live stock

This is manufactured by UMW. The manufacturer part number is AO3401A. It is assigned with possible HTSUS value of 8541.21.0095. The typical Vgs (th) (max) of the product is 1.3v @ 250µa. The product has 150°c (tj) operating temperature range. Moreover, the product comes in to-236-3, sc-59, sot-23-3. The maximum gate charge and given voltages include 9.4 nc @ 4.5 v. It has a maximum Rds On and voltage of 50mohm @ 4.2a, 10v. It carries FET type p-channel. The drive voltage (maximum and minimum Rds On) of the product includes 2.5v, 10v. It is shipped in tape & reel (tr) package . The product has a 30 v drain to source voltage. The maximum Vgs rate is ±12v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 1.4w (ta). The product's input capacitance at maximum includes 954 pf @ 15 v. It has a long 1 weeks standard lead time. The product is available in surface mount configuration. The product umw, is a highly preferred choice for users. sot-23 is the supplier device package value. The continuous current drain at 25°C is 4.2a (ta). This product use mosfet (metal oxide) technology. The product is designated with the ear99 code number.
