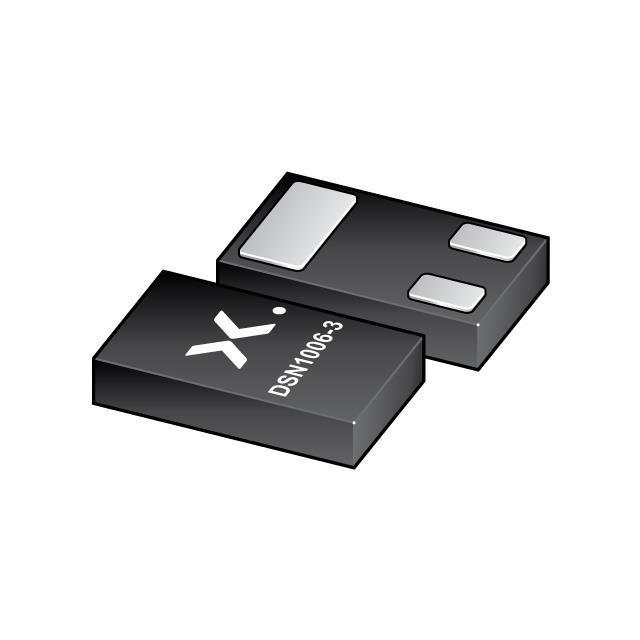

Nexperia USA Inc. PMCB60XNEAYL
Product Information
FET Feature:
-
HTSUS:
8541.29.0095
Vgs(th) (Max) @ Id:
1.1V @ 250µA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
3-XFDFN
Rds On (Max) @ Id, Vgs:
55mOhm @ 3.5A, 4.5V
Gate Charge (Qg) (Max) @ Vgs:
7.5 nC @ 4.5 V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
1.8V, 4.5V
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
30 V
Vgs (Max):
±12V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
480mW (Ta), 7W (Tc)
Input Capacitance (Ciss) (Max) @ Vds:
420 pF @ 15 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
DSN1006-3
Current - Continuous Drain (Id) @ 25°C:
3.5A (Ta)
Technology:
MOSFET (Metal Oxide)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search PMCB60XNEAYL on website for other similar products.
We accept all major payment methods for all products including ET23505041. Please check your shopping cart at the time of order.
You can order Nexperia USA Inc. brand products with PMCB60XNEAYL directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Single FETs, MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia USA Inc. PMCB60XNEAYL. You can also check on our website or by contacting our customer support team for further order details on Nexperia USA Inc. PMCB60XNEAYL.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23505041 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia USA Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET23505041.
Yes. We ship PMCB60XNEAYL Internationally to many countries around the world.
This is manufactured by Nexperia USA Inc.. The manufacturer part number is PMCB60XNEAYL. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 1.1v @ 250µa. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 3-xfdfn. It has a maximum Rds On and voltage of 55mohm @ 3.5a, 4.5v. The maximum gate charge and given voltages include 7.5 nc @ 4.5 v. The product is rohs3 compliant. In addition, it is reach unaffected. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 1.8v, 4.5v. It is shipped in tape & reel (tr) package . The product has a 30 v drain to source voltage. The maximum Vgs rate is ±12v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 480mw (ta), 7w (tc). The product's input capacitance at maximum includes 420 pf @ 15 v. The product is available in surface mount configuration. dsn1006-3 is the supplier device package value. The continuous current drain at 25°C is 3.5a (ta). This product use mosfet (metal oxide) technology. The product is designated with the ear99 code number.
