Maximum Continuous Drain Current:
280 mA
Width:
1.4mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
60 V
Maximum Gate Threshold Voltage:
2V
Package Type:
TO-236AB
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
0.6V
Maximum Operating Temperature:
+150 °C
Channel Type:
N
Length:
3.04mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
360 mW
Series:
TN2106
Maximum Gate Source Voltage:
20 V
Height:
1.02mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.8V
Maximum Drain Source Resistance:
5 Ω
FET Feature:
-
HTSUS:
8541.21.0095
Vgs(th) (Max) @ Id:
2V @ 1mA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
TO-236-3, SC-59, SOT-23-3
Rds On (Max) @ Id, Vgs:
2.5Ohm @ 500mA, 10V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
edacadModel:
TN2106K1-G Models
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
edacadModelUrl:
/en/models/4902937
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
60 V
Vgs (Max):
±20V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
360mW (Tc)
Input Capacitance (Ciss) (Max) @ Vds:
50 pF @ 25 V
standardLeadTime:
5 Weeks
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
TO-236AB (SOT23)
Current - Continuous Drain (Id) @ 25°C:
280mA (Tj)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
TN2106
ECCN:
EAR99

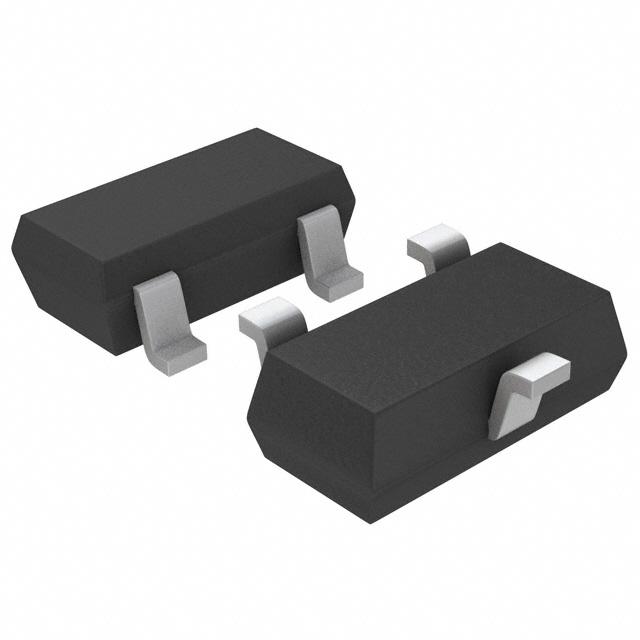

This is manufactured by Microchip Technology. The manufacturer part number is TN2106K1-G. While 280 ma of maximum continuous drain current. Furthermore, the product is 1.4mm wide. The product offers single transistor configuration. It has a maximum of 60 v drain source voltage. The product carries 2v of maximum gate threshold voltage. The package is a sort of to-236ab. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 0.6v. It has a maximum operating temperature of +150 °c. The product is available in [Cannel Type] channel. Its accurate length is 3.04mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 360 mw maximum power dissipation. The product tn2106, is a highly preferred choice for users. It features a maximum gate source voltage of 20 v. In addition, the height is 1.02mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.8v . It provides up to 5 ω maximum drain source resistance. It is assigned with possible HTSUS value of 8541.21.0095. The typical Vgs (th) (max) of the product is 2v @ 1ma. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in to-236-3, sc-59, sot-23-3. It has a maximum Rds On and voltage of 2.5ohm @ 500ma, 10v. The product is rohs3 compliant. In addition, it is reach unaffected. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 4.5v, 10v. It is shipped in tape & reel (tr) package . The product has a 60 v drain to source voltage. The maximum Vgs rate is ±20v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 360mw (tc). The product's input capacitance at maximum includes 50 pf @ 25 v. It has a long 5 weeks standard lead time. to-236ab (sot23) is the supplier device package value. The continuous current drain at 25°C is 280ma (tj). This product use mosfet (metal oxide) technology. Moreover, it corresponds to tn2106, a base product number of the product. The product is designated with the ear99 code number.
