Automotive Standard:
No
Maximum Power Dissipation Pd:
70W
Maximum Drain Source Voltage Vds:
60V
Channel Mode:
Enhancement
Maximum Gate Source Voltage Vgs:
20 V
Series:
STripFET F6
Forward Voltage Vf:
1.5V
Channel Type:
Type P
Typical Gate Charge Qg @ Vgs:
30nC
Package Type:
TO-252
Minimum Operating Temperature:
-55°C
Maximum Drain Source Resistance Rds:
0.028Ω
Standards/Approvals:
RoHS
Maximum Continuous Drain Current Id:
35A
Product Type:
MOSFET
Maximum Operating Temperature:
175°C
Pin Count:
3
Manufacturer Standard Lead Time:
18 Weeks
Detailed Description:

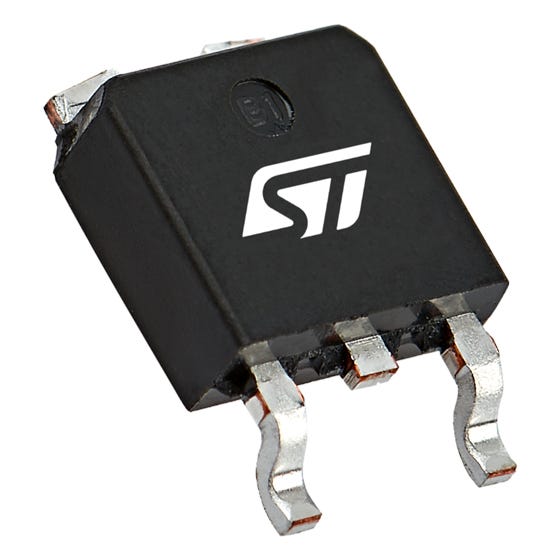

P-Channel 60V 35A (Tc) 70W (Tc) Surface Mount DPAK
Vgs(th) (Max) @ Id:
2.5V @ 250µA
Operating Temperature:
175°C (TJ)
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
Base Part Number:
STD35
Gate Charge (Qg) (Max) @ Vgs:
30nC @ 4.5V
Rds On (Max) @ Id, Vgs:
28mOhm @ 17.5A, 10V
FET Type:
P-Channel
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
Manufacturer:
STMicroelectronics
Drain to Source Voltage (Vdss):
60V
Vgs (Max):
±20V
Input Capacitance (Ciss) (Max) @ Vds:
3780pF @ 25V
Mounting Type:
Surface Mount
Series:
STripFET™ F6
Supplier Device Package:
DPAK
Packaging:
Cut Tape (CT)
Current - Continuous Drain (Id) @ 25°C:
35A (Tc)
Customer Reference:
Power Dissipation (Max):
70W (Tc)
Technology:
MOSFET (Metal Oxide)
