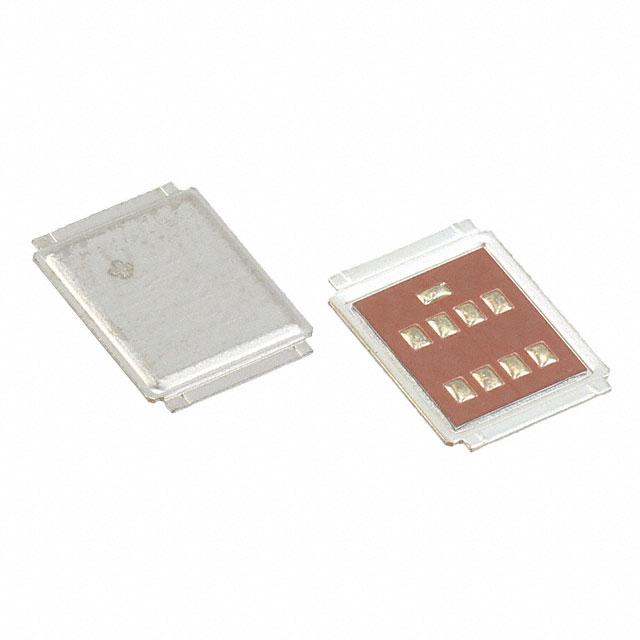

Infineon Technologies IRF7769L1TRPBF
Product Information
FET Feature:
-
HTSUS:
8541.29.0095
Vgs(th) (Max) @ Id:
4V @ 250µA
Operating Temperature:
-55°C ~ 175°C (TJ)
Package / Case:
DirectFET™ Isometric L8
Rds On (Max) @ Id, Vgs:
3.5mOhm @ 74A, 10V
Gate Charge (Qg) (Max) @ Vgs:
300 nC @ 10 V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
edacadModel:
IRF7769L1TRPBF Models
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
10V
edacadModelUrl:
/en/models/3990840
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
100 V
Vgs (Max):
±20V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
3.3W (Ta), 125W (Tc)
Input Capacitance (Ciss) (Max) @ Vds:
11560 pF @ 25 V
standardLeadTime:
12 Weeks
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
DirectFET™ Isometric L8
Current - Continuous Drain (Id) @ 25°C:
20A (Ta), 124A (Tc)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
IRF7769
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search IRF7769L1TRPBF on website for other similar products.
We accept all major payment methods for all products including ET11351245. Please check your shopping cart at the time of order.
You can order Infineon Technologies brand products with IRF7769L1TRPBF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Single FETs, MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Infineon Technologies IRF7769L1TRPBF. You can also check on our website or by contacting our customer support team for further order details on Infineon Technologies IRF7769L1TRPBF.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11351245 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Infineon Technologies" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11351245.
Yes. We ship IRF7769L1TRPBF Internationally to many countries around the world.
This is manufactured by Infineon Technologies. The manufacturer part number is IRF7769L1TRPBF. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 4v @ 250µa. The product has -55°c ~ 175°c (tj) operating temperature range. Moreover, the product comes in directfet™ isometric l8. It has a maximum Rds On and voltage of 3.5mohm @ 74a, 10v. The maximum gate charge and given voltages include 300 nc @ 10 v. The product is rohs3 compliant. In addition, it is reach unaffected. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 10v. It is shipped in tape & reel (tr) package . The product has a 100 v drain to source voltage. The maximum Vgs rate is ±20v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 3.3w (ta), 125w (tc). The product's input capacitance at maximum includes 11560 pf @ 25 v. It has a long 12 weeks standard lead time. The product is available in surface mount configuration. directfet™ isometric l8 is the supplier device package value. The continuous current drain at 25°C is 20a (ta), 124a (tc). This product use mosfet (metal oxide) technology. Moreover, it corresponds to irf7769, a base product number of the product. The product is designated with the ear99 code number.
