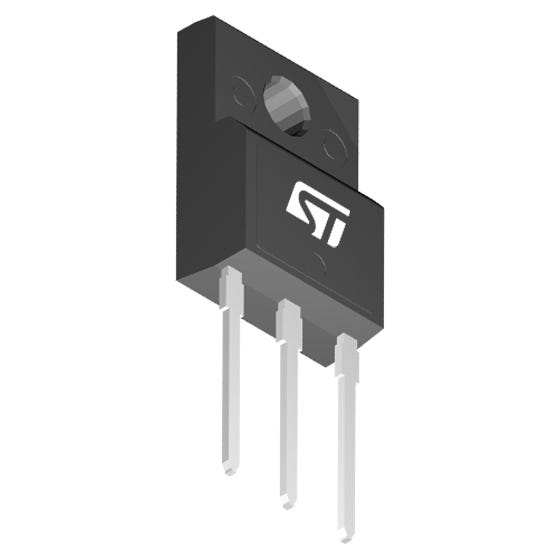

STMicroelectronics STF3NK80Z
Product Information
FET Feature:
-
HTSUS:
8541.29.0095
Vgs(th) (Max) @ Id:
4.5V @ 50µA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
TO-220-3 Full Pack
Rds On (Max) @ Id, Vgs:
4.5Ohm @ 1.25A, 10V
Gate Charge (Qg) (Max) @ Vgs:
19 nC @ 10 V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
edacadModel:
STF3NK80Z Models
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
10V
edacadModelUrl:
/en/models/725218
Package:
Tube
Drain to Source Voltage (Vdss):
800 V
Vgs (Max):
±30V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
25W (Tc)
Input Capacitance (Ciss) (Max) @ Vds:
485 pF @ 25 V
standardLeadTime:
13 Weeks
Mounting Type:
Through Hole
Series:
SuperMESH™
Supplier Device Package:
TO-220FP
Current - Continuous Drain (Id) @ 25°C:
2.5A (Tc)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
STF3NK80
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search STF3NK80Z on website for other similar products.
We accept all major payment methods for all products including ET11054078. Please check your shopping cart at the time of order.
You can order STMicroelectronics brand products with STF3NK80Z directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Single FETs, MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of STMicroelectronics STF3NK80Z. You can also check on our website or by contacting our customer support team for further order details on STMicroelectronics STF3NK80Z.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11054078 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "STMicroelectronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11054078.
Yes. We ship STF3NK80Z Internationally to many countries around the world.
This is manufactured by STMicroelectronics. The manufacturer part number is STF3NK80Z. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 4.5v @ 50µa. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in to-220-3 full pack. It has a maximum Rds On and voltage of 4.5ohm @ 1.25a, 10v. The maximum gate charge and given voltages include 19 nc @ 10 v. The product is rohs3 compliant. In addition, it is reach unaffected. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 10v. It is shipped in tube package . The product has a 800 v drain to source voltage. The maximum Vgs rate is ±30v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 25w (tc). The product's input capacitance at maximum includes 485 pf @ 25 v. It has a long 13 weeks standard lead time. The product is available in through hole configuration. The product supermesh™, is a highly preferred choice for users. to-220fp is the supplier device package value. The continuous current drain at 25°C is 2.5a (tc). This product use mosfet (metal oxide) technology. Moreover, it corresponds to stf3nk80, a base product number of the product. The product is designated with the ear99 code number.
