Maximum Continuous Drain Current:
334 A
Transistor Material:
Si
Width:
23.25mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
100 V
Maximum Gate Threshold Voltage:
5V

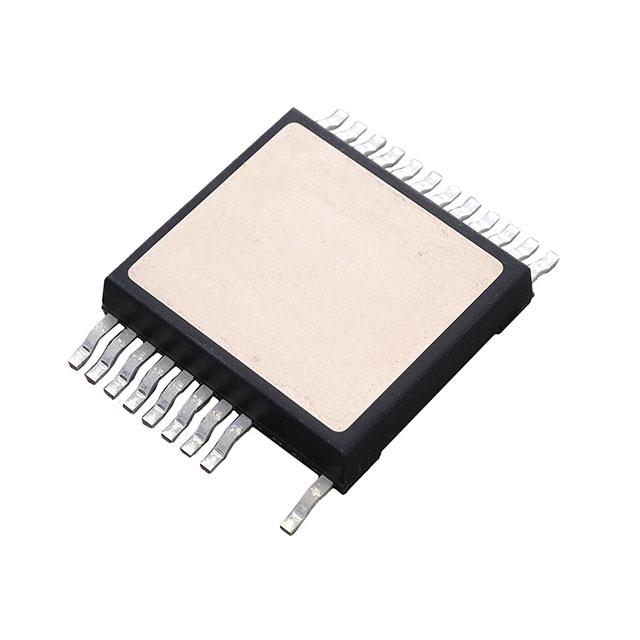

Package Type:
SMPD
Number of Elements per Chip:
1
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
670 nC @ 10 V
Channel Type:
N
Length:
25.25mm
Pin Count:
24
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
680 W
Series:
GigaMOS, HiperFET
Maximum Gate Source Voltage:
-30 V, +30 V
Height:
5.7mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
Maximum Drain Source Resistance:
2.6 mΩ
FET Feature:
-
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 175°C (TJ)
Package / Case:
24-PowerSMD, 21 Leads
Rds On (Max) @ Id, Vgs:
2.6mOhm @ 60A, 10V
Gate Charge (Qg) (Max) @ Vgs:
670 nC @ 10 V
Vgs(th) (Max) @ Id:
5V @ 8mA
REACH Status:
REACH Unaffected
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
10V
Drain to Source Voltage (Vdss):
100 V
Vgs (Max):
±20V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
680W (Tc)
standardLeadTime:
27 Weeks
Input Capacitance (Ciss) (Max) @ Vds:
4700 pF @ 10 V
Mounting Type:
Surface Mount
Series:
GigaMOS™, HiPerFET™, TrenchT2™
Supplier Device Package:
24-SMPD
Packaging:
Tube
Current - Continuous Drain (Id) @ 25°C:
334A (Tc)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
MMIX1F420
ECCN:
EAR99
