Mounting Type:
Surface Mount
Peak Reverse Recovery Time:
33ns
Peak Non-Repetitive Forward Surge Current:
13A
Maximum Forward Voltage Drop:
540mV
Maximum Continuous Forward Current:
1.5A
Diode Technology:
Schottky
Package Type:
DSN
Number of Elements per Chip:
1
Diode Type:
Schottky
Diode Configuration:
Single
Pin Count:
2
Peak Reverse Repetitive Voltage:
40V
Operating Temperature - Junction:
150°C (Max)
Package / Case:
2-XDFN
REACH Status:
REACH Unaffected
Reverse Recovery Time (trr):
33 ns
Current - Average Rectified (Io):
1.5A
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Voltage - Forward (Vf) (Max) @ If:
590 mV @ 1.5 A
Package:
Bulk
Voltage - DC Reverse (Vr) (Max):
40 V
Capacitance @ Vr, F:
85pF @ 2V, 1MHz
Moisture Sensitivity Level (MSL):
Vendor Undefined
Current - Reverse Leakage @ Vr:
75 µA @ 40 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
2-DSN (1.4x0.6)
Technology:
Schottky

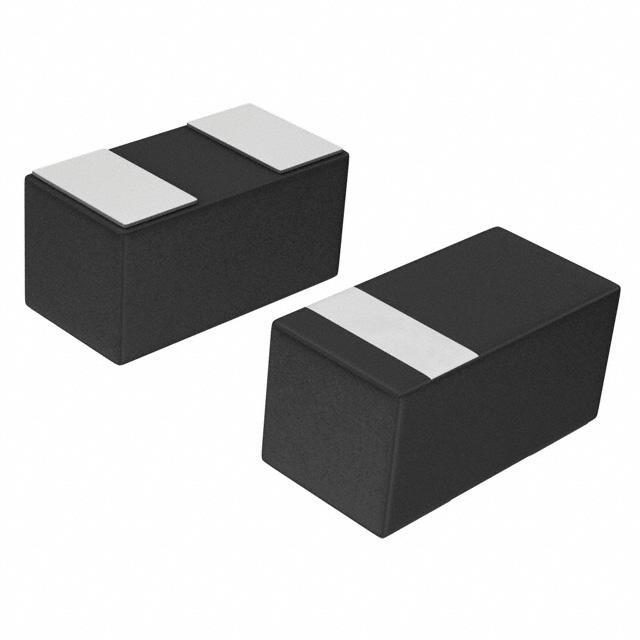

This is ON Semi 40V 1.5A Schottky Diode 2-Pin DSN manufactured by onsemi. The manufacturer part number is NSR15405NXT5G. The product is available in surface mount configuration. Moreover, it has a peak reverse recovery time about 33ns . Moreover, a bespoke product has 13a peak non-repetitive forward surge current. It features 540mv of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 1.5a. The product utilizes schottky diode technology. The package is a sort of dsn. It consists of 1 elements per chip. It is designed with a schottky diode. The diode features a single configuration. It contains 2 pins. While having the peak reverse repetitive 40v. The product operate at temperatures ranging from 150°c (max). Moreover, the product comes in 2-xdfn. In addition, it is reach unaffected. It has a trr (reverse recovery time) of 33 ns. It features a 1.5a of average rectified current. It has a robust speed of fast recovery =< 500ns, > 200ma (io). The product has a maximum forward voltage of 590 mv @ 1.5 a. It is shipped in bulk package . While it has maximum reverse voltage of 40 v. Moreover, the product has a 85pf @ 2v, 1mhz capacitance. Its typical moisture sensitivity level is vendor undefined. 75 µa @ 40 v is the reverse leakage value of a bespoke product. 2-dsn (1.4x0.6) is the supplier device package value. This product use schottky technology.
