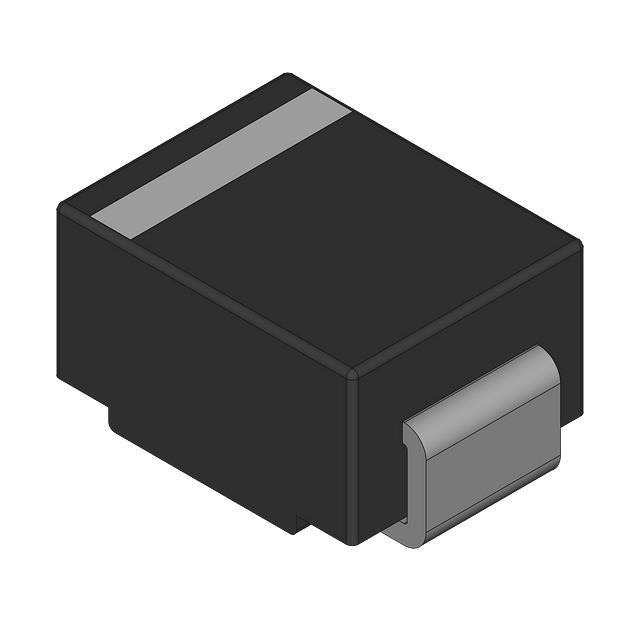

Fairchild EGF1A SMT Fast Recovery Diode, 50V 1A, 50ns, 2-Pin DO-214AC

EGF1A Fairchild  SMT Fast Recovery Diode, 50V 1A, 50ns, 2-Pin DO-214AC
EGF1A
Fairchild Semiconductor

Product Information

Dimensions:
4.75 x 2.95 x 2.2mm
Mounting Type:
Surface Mount
Rectifier Type:
Fast Recovery
Maximum Continuous Forward Current:
1A
Peak Reverse Recovery Time:
50ns
Peak Non-Repetitive Forward Surge Current:
30A
Maximum Forward Voltage Drop:
1V
Height:
2.2mm
Peak Reverse Current:
100µA
Width:
2.95mm
Length:
4.75mm
Package Type:
DO-214AC
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Diode Type:
Silicon Junction
Maximum Operating Temperature:
+175 °C
Diode Configuration:
Single
Pin Count:
2
Peak Reverse Repetitive Voltage:
50V
Operating Temperature - Junction:
-65°C ~ 175°C
Package / Case:
DO-214AC, SMA
Reverse Recovery Time (trr):
50 ns
REACH Status:
REACH Unaffected
edacadModelUrl:
/en/models/15636316
Current - Average Rectified (Io):
1A
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Voltage - Forward (Vf) (Max) @ If:
1 V @ 1 A
Package:
Bulk
Voltage - DC Reverse (Vr) (Max):
50 V
Capacitance @ Vr, F:
15pF @ 4V, 1MHz
Moisture Sensitivity Level (MSL):
Vendor Undefined
Current - Reverse Leakage @ Vr:
10 µA @ 50 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
DO-214AC (SMA)
Technology:
Standard
edacadModel:
EGF1A Models
RoHs Compliant
Checking for live stock

This is Fairchild SMT Fast Recovery Diode 50V 1A 50ns 2-Pin DO-214AC manufactured by Fairchild Semiconductor. The manufacturer part number is EGF1A. The given dimensions of the product include 4.75 x 2.95 x 2.2mm. The product is available in surface mount configuration. This fast recovery product is highly suited for various professionals in various settings. Furthermore, its maximum continuous forward current constitutes 1a. Moreover, it has a peak reverse recovery time about 50ns . Moreover, a bespoke product has 30a peak non-repetitive forward surge current. It features 1v of maximum forward voltage drop. In addition, the height is 2.2mm. It has a typical 100µa peak reverse current . Furthermore, the product is 2.95mm wide. Its accurate length is 4.75mm. The package is a sort of do-214ac. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. It is designed with a silicon junction diode. It has a maximum operating temperature of +175 °c. The diode features a single configuration. It contains 2 pins. While having the peak reverse repetitive 50v. The product operate at temperatures ranging from -65°c ~ 175°c. Moreover, the product comes in do-214ac, sma. It has a trr (reverse recovery time) of 50 ns. In addition, it is reach unaffected. It features a 1a of average rectified current. It has a robust speed of fast recovery =< 500ns, > 200ma (io). The product has a maximum forward voltage of 1 v @ 1 a. It is shipped in bulk package . While it has maximum reverse voltage of 50 v. Moreover, the product has a 15pf @ 4v, 1mhz capacitance. Its typical moisture sensitivity level is vendor undefined. 10 µa @ 50 v is the reverse leakage value of a bespoke product. do-214ac (sma) is the supplier device package value. This product use standard technology.

pdf icon
EGF1A - EGF1D, Fast Rectifiers (Glass Passivated) Data Sheet(Technical Reference)
