Product Type:

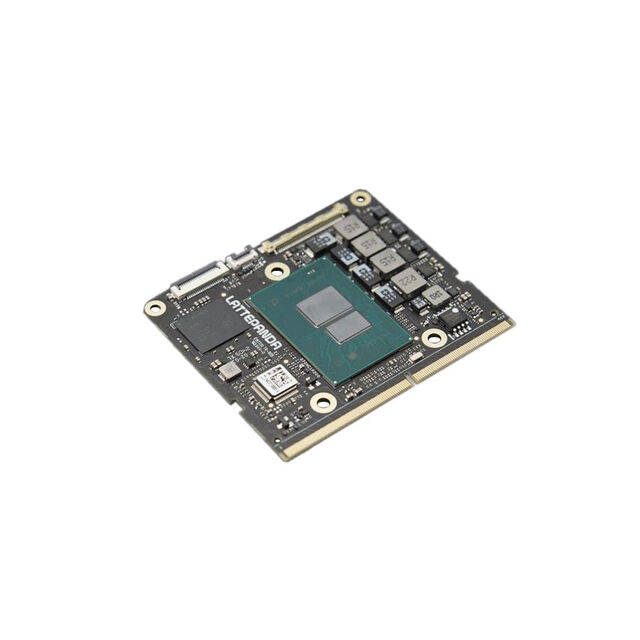

Single Board Computer
Installed Memory:
8GB
Minimum Supply Voltage:
9V
Processor Clock Speed:
3.4GHz
Maximum Supply Voltage:
20V
Series:
DFR
Supported Memory Technology:
8Gb
Memory Socket Type:
LPDDR5
Expansion Slots:
64 expandable GPIOs, 8 USB 2.0, 9 PCIe 3.0 lanes, DisplayPort, 2 SATA 3.0, 3 HDMI, Up to 4 USB 3.2
Width:
60 mm
Length:
69.6mm
Standards/Approvals:
No
Minimum Operating Temperature:
0°C
Core Processor:
Quad Core
Maximum Operating Temperature:
60°C
USB:
USB 2.0 (8), USB 3.2 (4)
HTSUS:
8471.50.0150
RoHS Status:
RoHS Compliant
Power (Watts):
-
Number of Cores:
4
title:
DFR1146
RAM Capacity/Installed:
8GB/0GB
Cooling Type:
-
Watchdog Timer:
-
Storage Interface:
eMMC, I2C, PCIe, SATA 3.0 (2)
Form Factor:
-
Video Outputs:
DP, HDMI
Manufacturer:
DFRobot
Expansion Site/Bus:
GPIO, I2C, PCIe, SATA, UART
Size / Dimension:
2.740" x 2.362" (69.60mm x 60.00mm)
Digital I/O Lines:
-
Ethernet:
-
standardLeadTime:
4 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Series:
-
Operating Temperature:
0°C ~ 60°C
Packaging:
Bulk
Analog Input:Output:
-
Core Processor:
Intel N100
Speed:
3.4GHz
Contents:
-
ECCN:
5A992C
