Dimensions:
12.5 x 10 x 7.5mm
Electrical Life:
10^5 Operations
Application:
Signal
Terminal Type:
PCB Pin
Coil Resistance:
405Ω
Life:
10000000 (Mechanical) cycles, 90000 (Electrical) cycles
Standards Met:
CQC 02001001948, RoHS Compliant, UL E133481
Coil Power:
50mW
Maximum Switching Voltage DC:
60V
Maximum Switching Power DC:
30 W
Isolation Coil To Contact:
1.8kV rms
Maximum Operating Temperature:
+70°C
Switching Current:
2A
Maximum Switching Current AC:
2 A
Coil Voltage:
12V dc
Operating Temperature Range:
-30 → +70°C
Latching:
No
Contact Configuration:
SPDT
Depth:
7.5mm
Relay Switching Classification:
Subminiature Signal Relay
Features:
High Sensitive, 1 Form C Configuration, Wash Tight Type Available
Mounting Type:
PCB Mount
Length:
12.5mm
Height:
10mm
Maximum Switching Current DC:
2 A
Maximum Switching Voltage AC:
125V
Minimum Operating Temperature:
-30°C
Maximum Switching Power AC:
62.5VA
Number of Poles:
1
Contact Material:
AgNi + Au

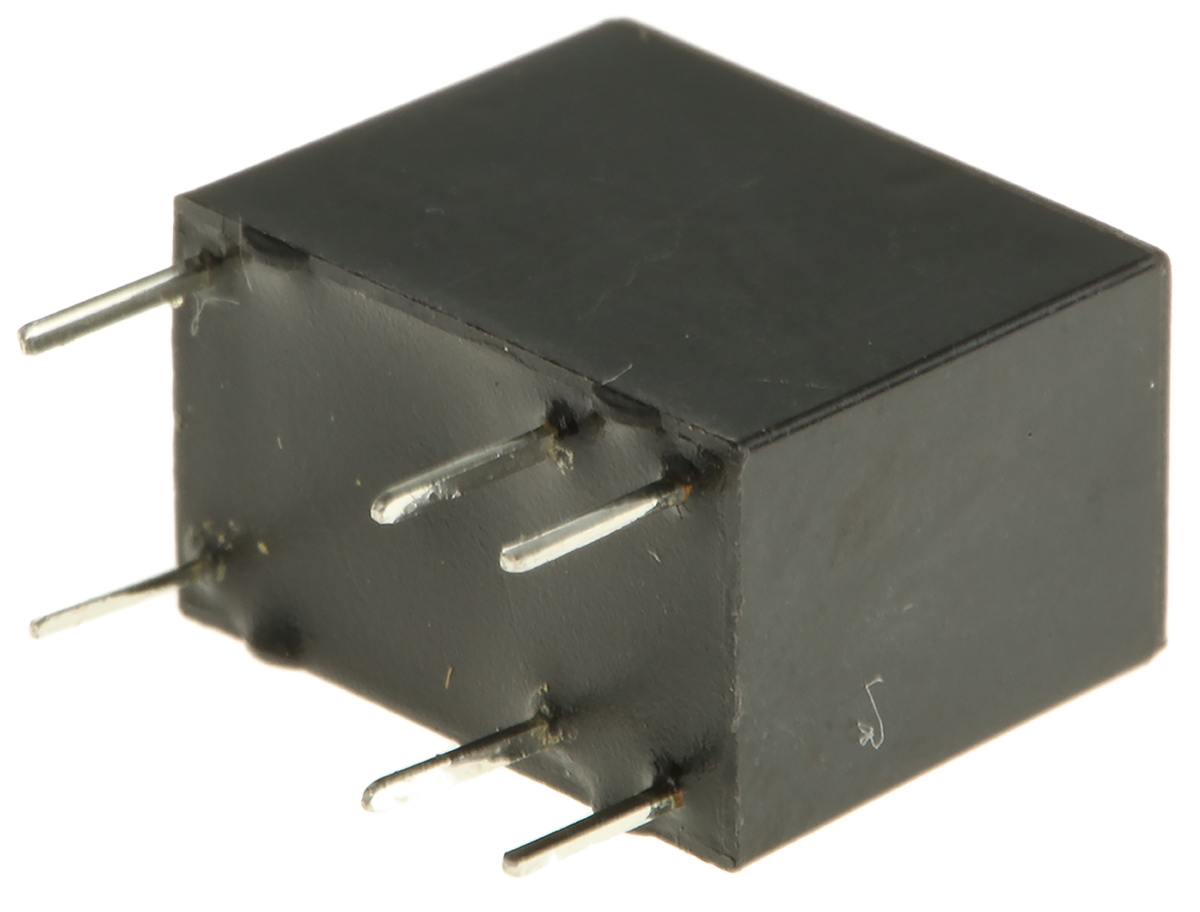

This is SPDT Non-Latching Relay PCB Mount 12V dc Coil 2 A Subminiature Signal Relay manufactured by RS Pro. The manufacturer part number is 476-725. The given dimensions of the product include 12.5 x 10 x 7.5mm. The product offers long-lasting services of 10^5 operations. Applications Information involves signal. The terminal is a pcb pin type. It holds up to 405ω coil resistance. It is capable of doing 10000000 (mechanical) cycles, 90000 (electrical) cycles in a lifetime . The product complies with all safety standards, such as cqc 02001001948, rohs compliant, ul e133481. Robust coil power of 50mw. While it carries 60v of maximum DC switching voltage. It bears a maximum 30 w of DC switching power. The product has 1.8kv rms isolation coil to contact. It has a maximum operating temperature of +70°c. It is integrated with 2a switching current. It has a maximum 2 a switching current AC . The coil voltage of the product is 12v dc. The product has -30 → +70°c of operating temperature range. Latching Options - no. The contact is equipped with spdt configuration. The product comes in 7.5mm depth. It has a subminiature signal relay switching relay configuration . The splendid features of the product include high sensitive, 1 form c configuration, wash tight type available. The product is available in pcb mount configuration. Its accurate length is 12.5mm. In addition, the height is 10mm. It has a minimum 2 a DC switching current . It has a maximum AC switching voltage of 125v. Whereas, the minimum operating temperature of the product is -30°c. It also features an AC switching power of 62.5va. It has equipped with 1 poles. The product is made from sturdy agni + au materials.
